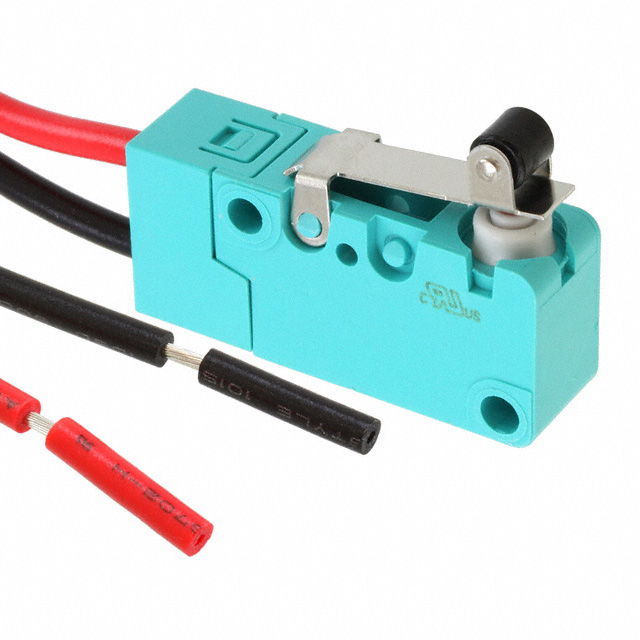

ABV1625503R

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 5A 250V

Search across all available documentation for this part.

Active

Panasonic Electric Works

SWITCH SNAP ACT SPST-NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPST-NC 5A 250V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Differential Travel	Differential Travel	Termination Style	Pretravel	Pretravel	Mechanical Life	Mounting Type	Switch Function	Operating Force	Operating Position	Operating Position	Circuit	Overtravel	Overtravel	Electrical Life	Voltage Rating - AC	Actuator Type	Ingress Protection
Panasonic Electric Works ABV1625503R	85 °C	-40 °C	5 A	0.5 mm	0.02 in	Wire Leads	0.063 in	1.6 mm	5000000 Cycles	Chassis Mount	On-Mom	220 gf	20.7 mm	0.815 in	SPST-NC	0.76 mm	0.03 in	100000 Cycles	250 V	Lever, Roller	IP67 - Dust Tight, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPST-NC Chassis Mount
