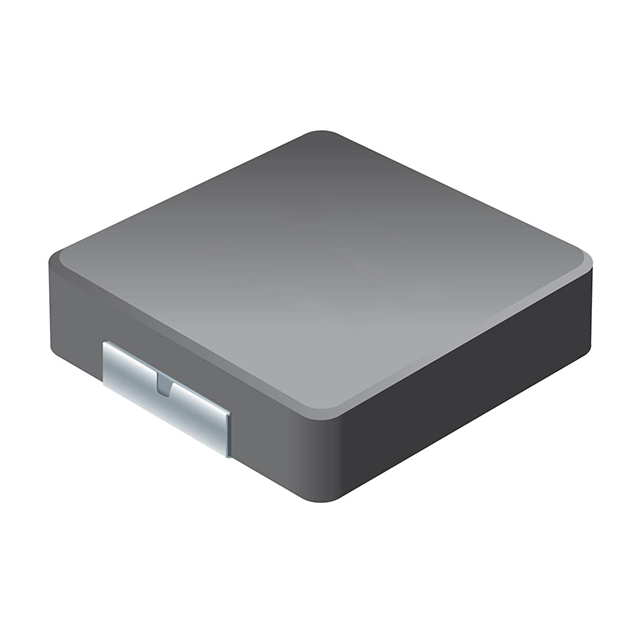

SRP3020TA-R33M
ActiveBourns Inc.
IND,3.5X3.2X1.8MM,0.33UH,20%,8A,SHD,SMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Search across all available documentation for this part.
SRP3020TA-R33M
ActiveBourns Inc.
IND,3.5X3.2X1.8MM,0.33UH,20%,8A,SHD,SMD /TAPE & REEL - 13" REEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP3020TA-R33M |
|---|---|
| Current - Saturation (Isat) | 10 A |
| Current Rating (Amps) | 8 A |
| DC Resistance (DCR) [Max] | 21 mOhm |
| Frequency - Self Resonant | 160 MHz |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Inductance | 330 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Q @ Freq | 100 kHz, 5 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 0.138 " |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Supplier Device Package | 2-SMD |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
SRP3020TA Series
| Part | Shielding | Current Rating (Amps) | Package / Case | Frequency - Self Resonant | DC Resistance (DCR) | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Type | Tolerance | Q @ Freq | Material - Core | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Current - Saturation (Isat) | Mounting Type | Ratings | Inductance Frequency - Test | Supplier Device Package | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Shielded | 2.6 A | 2-SMD | 34 MHz | 200 mOhm | 4.7 ÁH | 0.138 " | 0.126 " | 3.2 mm | 3.5 mm | Drum Core Wirewound | 20 % | 10 100 kHz | Carbonyl Powder | 2 mm | 0.079 in | 3 A | Surface Mount | AEC-Q200 | 100 kHz | 2-SMD | |
Bourns Inc. | Shielded | 2-SMD | 185 MHz | 220 nH | 0.138 " | 0.126 " | 3.2 mm | 3.5 mm | Drum Core Wirewound | 30 % | 5 100 kHz | Carbonyl Powder | 2 mm | 0.079 in | 11.2 A | Surface Mount | AEC-Q200 | 100 kHz | 2-SMD | 14 mOhm | ||
Bourns Inc. | Shielded | 5.5 Amps | 2-SMD | 94 MHz | 0.68 µH | 0.138 " | 0.126 " | 3.2 mm | 3.5 mm | Drum Core Wirewound | 20 % | 5 100 kHz | Carbonyl Powder | 2 mm | 0.079 in | 7 A | Surface Mount | AEC-Q200 | 100 kHz | 2-SMD | 29 mOhm | |
Bourns Inc. | Shielded | 8 A | 2-SMD | 160 MHz | 330 nH | 0.138 " | 0.126 " | 3.2 mm | 3.5 mm | Drum Core Wirewound | 20 % | 5 100 kHz | Carbonyl Powder | 2 mm | 0.079 in | 10 A | Surface Mount | AEC-Q200 | 100 kHz | 2-SMD | 21 mOhm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SRP3020TA Series
330 nH Shielded Drum Core, Wirewound Inductor 8 A 21mOhm Max 2-SMD
