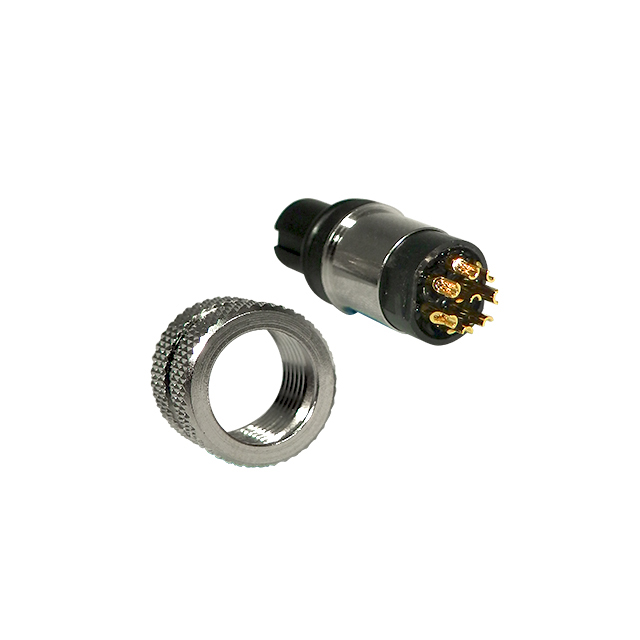

858-008-203RLS4 - M12 Series FEMALE 8POS

858-008-203RLS4

Active
MH Connectors

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN3D Product Image EN+4
858-008-203RLS4 - M12 Series FEMALE 8POS

858-008-203RLS4

Active
MH Connectors

CONN PLUG FMALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsProduct Change Notice EN3D Product Image EN+4

Technical Specifications

Parameters and characteristics for this part

Specification858-008-203RLS4
ColorBlack, Silver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating10 çin
Contact Finish Thickness - Mating0.25 çm
Contact MaterialBrass
Current Rating (Amps)2 A
FeaturesCoupling Nut
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT)
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
Number of Positions8
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialBrass
Shell Size - InsertM12-8
ShieldingShielded
Voltage Rating30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 15.63
10$ 12.02
25$ 10.87
40$ 10.33
80$ 9.61
230$ 8.62
440$ 8.09
945$ 7.52
NewarkEach 100$ 11.61
250$ 10.78
500$ 10.08

Description

General part information

858-008 Series

8 Position Circular Connector Plug, Female Sockets Solder Cup
