2823654

Active

Phoenix Contact

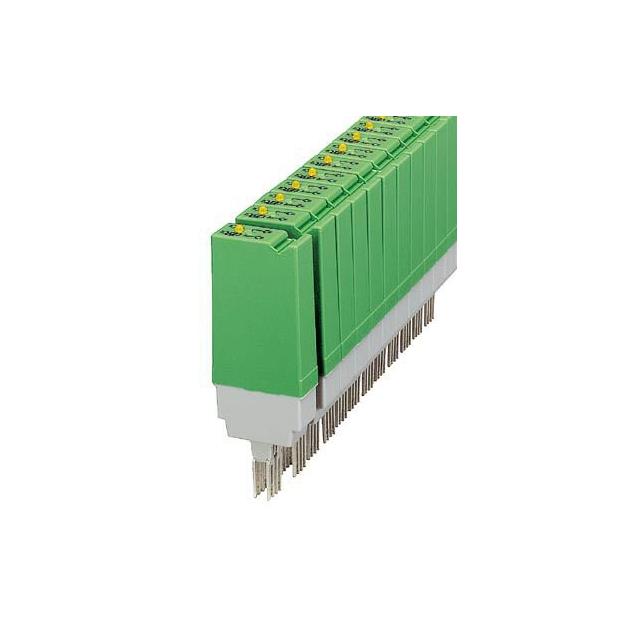

RELAY CONNECTOR, FITTED WITH MINIATURE SWITCHING RELAY

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY CONNECTOR, FITTED WITH MINIATURE SWITCHING RELAY

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE SPST 6A 24V

Part	Mounting Type	Switching Voltage	Relay Type	Operate Time	Contact Form	Termination Style	Contact Material	Coil Current	Coil Voltage	Release Time	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Approval Agency	Coil Resistance	Features
Phoenix Contact 2823625	Socketable	250 VAC, 250 VDC	General Purpose	7 ms	SPST-NO (1 Form A)	Plug In	Silver Nickel (AgNi)	21 mA	24 VAC	11 ms	6 A	50 °C	-20 C	Non Latching
Phoenix Contact 2823654	Socketable	250 VAC, 250 VDC	General Purpose	7 ms	SPST-NO (1 Form A)	Plug In	Silver Nickel (AgNi)	5 mA	120 VAC, 120 VDC	11 ms	6 A	50 °C	-20 C	Non Latching	EAC	24 kOhms
Phoenix Contact 2823670	Socketable	250 VAC, 250 VDC	General Purpose	7 ms	SPST-NC (1 Form B)	Plug In	Silver Nickel (AgNi)	21 mA	24 VAC	11 ms	6 A	50 °C	-20 C	Non Latching	EAC	1142 kOhms	Lighted Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 159.62

General part information

General Purpose Relay SPST-NO (1 Form A) 120VAC/DC Coil Socketable
