APT1212

Active

Panasonic Electric Works

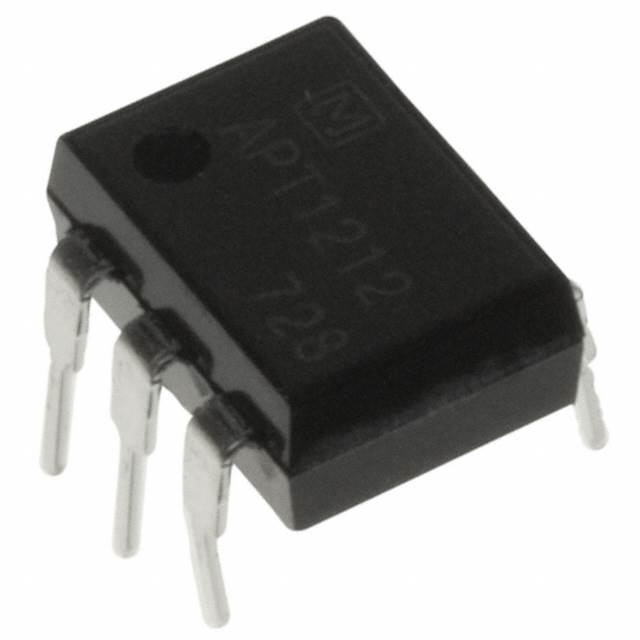

OPTOISOLATOR 5KV TRIAC 6DIP

Search across all available documentation for this part.

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	APT1212

Approval Agency	cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Through Hole
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	6-DIP
Package / Case	0.3 in
Package / Case	7.62 mm
Static dV/dt (Min) [Min]	500 V/µs
Supplier Device Package	6-DIP
Turn On Time	100 µs
Voltage - Forward (Vf) (Typ)	1.21 V
Voltage - Off State	600 V
Zero Crossing Circuit	True

Part	Zero Crossing Circuit	Output Type	Voltage - Forward (Vf) (Typ)	Package / Case	Current - LED Trigger (Ift) (Max) [Max]	Current - Hold (Ih)	Voltage - Off State	Mounting Type	Approval Agency	Static dV/dt (Min) [Min]	Number of Channels	Current - DC Forward (If) (Max)	Current - On State (It (RMS)) (Max)	Supplier Device Package	Turn On Time	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case
Panasonic Electric Works APT1211		Triac	1.21 V	4-DIP (0.300" 7.62mm)	10 mA	3.5 mA	600 V	Through Hole	cUR VDE	500 V/µs	1	50 mA	100 mA	4-DIP	100 µs	100 °C	-40 °C
Panasonic Electric Works APT1212		Triac	1.21 V	6-DIP	10 mA	3.5 mA	600 V	Through Hole	cUR VDE	500 V/µs	1	50 mA	100 mA	6-DIP	100 µs	100 °C	-40 °C	0.3 in	7.62 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 6-DIP
