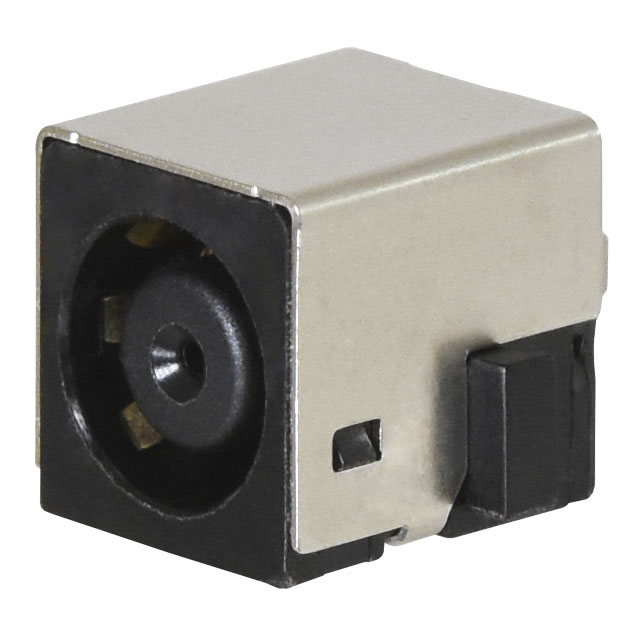

PJ-097H
ObsoleteCUI Devices
PWR JACK 0.6X5.0X7.5MM VERTICAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PJ-097H
ObsoleteCUI Devices
PWR JACK 0.6X5.0X7.5MM VERTICAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-097H |
|---|---|
| Actual Diameter [custom] | 5 mm |
| Actual Diameter [custom] | 0.197 in |
| Actual Diameter [custom] | 0.8 mm |
| Actual Diameter [custom] | 0.031 " |
| Body Color | Silver, Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 8 A |
| Gender | Female |
| Housing Material | Polyamide (PA10T), Nylon 10T |
| Industry Recognized Mating Diameter [diameter] | 0.8 mm, 5 mm |
| Industry Recognized Mating Diameter [diameter] | 0.197 in, 0.031 in |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth | 9.2 mm |
| Mating Length/Depth | 0.362 in |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Termination | Solder Eyelet(s) |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.40 | |
| 10 | $ 1.83 | |||
| 25 | $ 1.65 | |||
| 50 | $ 1.52 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.19 | |||
| 1000 | $ 1.10 | |||
Description
General part information
PJ-097 Series
Power Barrel Connector Jack 0.80mm ID (0.031"), 5.00mm OD (0.197") Panel Mount
