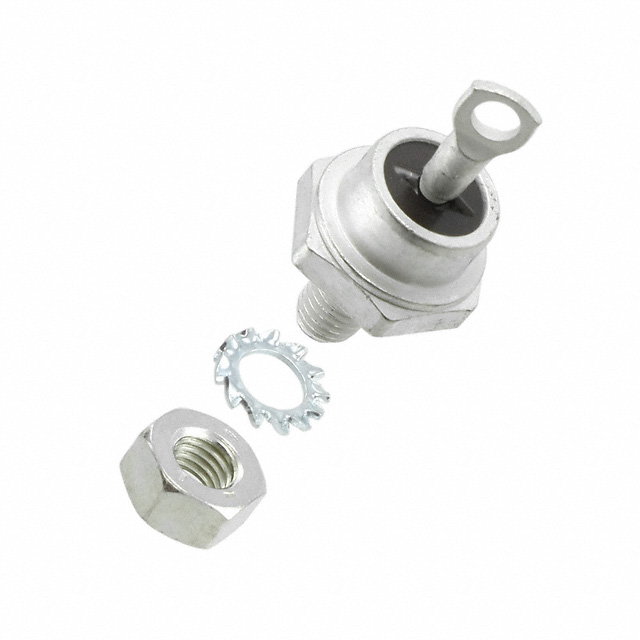

DSA35-16A

Obsolete

IXYS

DIODE AVAL 1.6KV 49A DO203AB

Search across all available documentation for this part.

Obsolete

IXYS

DIODE AVAL 1.6KV 49A DO203AB

Technical Specifications

Parameters and characteristics for this part

Specification	DSA35-16A

Current - Average Rectified (Io)	49 A
Current - Reverse Leakage @ Vr	4 mA
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-203AB
Technology	Avalanche
Voltage - Forward (Vf) (Max) @ If	1.55 V

Part	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Mounting Type	Supplier Device Package	Technology	Package / Case	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]
IXYS DSA35-12A	49 A	1.55 V	4 mA	Chassis Stud Mount	DO-203AB	Avalanche	DO-203AB DO-5 Stud	Standard Recovery >500ns	200 mA	1.2 kV
IXYS DSA35-18A	49 A	1.55 V	4 mA	Chassis Stud Mount	DO-203AB	Avalanche	DO-203AB DO-5 Stud	Standard Recovery >500ns	200 mA	1800 V
IXYS DSA35-16A	49 A	1.55 V	4 mA	Chassis Stud Mount	DO-203AB	Avalanche	DO-203AB DO-5 Stud	Standard Recovery >500ns	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 1600 V 49A Chassis, Stud Mount DO-203AB

Technical documentation and resources
