745-088-520-201

Active

EDAC Inc.

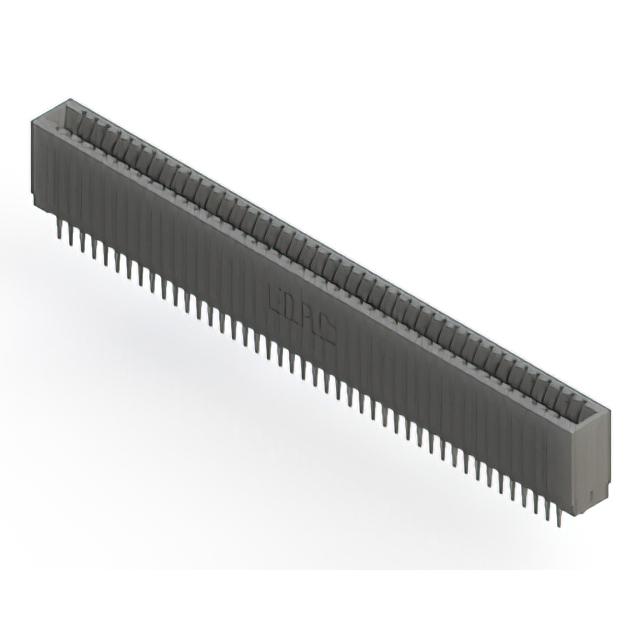

CARD EDGE CONNECTOR, 88 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,

Search across all available documentation for this part.

Active

EDAC Inc.

CARD EDGE CONNECTOR, 88 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, BLACK INSULATOR,

Technical Specifications

Parameters and characteristics for this part

Specification	745-088-520-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	88
Number of Positions/Bay/Row [custom]	44
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

Part	Termination Rows	Number of Positions	Gender	Pitch [x]	Pitch [x]	Termination	Read Out	Contact Type	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Material	Number of Positions/Bay/Row [custom]	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish
EDAC Inc. 745-088-520-201	2	88	Female	2.54 mm	0.1 in	Press-Fit	Dual	Cantilever	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	2	Copper Alloy	44	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	Gold
EDAC Inc. 745-088-540-206	2	88	Female	2.54 mm	0.1 in	Press-Fit Wire Wrap	Dual	Cantilever	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	2	Copper Alloy	44	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	Gold
EDAC Inc. 745-088-525-201	2	88	Female	2.54 mm	0.1 in	Press-Fit	Dual	Cantilever	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	2	Copper Alloy	44	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	Gold
EDAC Inc. 745-088-540-201	2	88	Female	2.54 mm	0.1 in	Press-Fit Wire Wrap	Dual	Cantilever	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	2	Copper Alloy	44	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	Gold
EDAC Inc. 745-088-545-201	2	88	Female	2.54 mm	0.1 in	Press-Fit	Dual	Cantilever	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	0.76 Ám	30 Áin	2	Copper Alloy	44	Polyester Thermoplastic	-40 °C	105 ░C	Through Hole	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

88 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
