936287-2

Active

TE Connectivity AMP Connectors

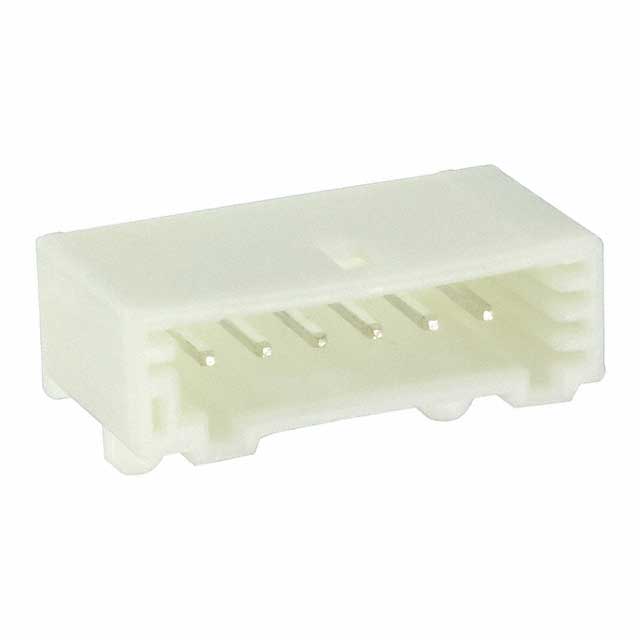

CONN HEADER R/A 6POS 2.54MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	936287-2

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin-Lead
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	7.4 mm
Insulation Height	0.291 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

CONN HEADER R/A 6POS 2.54MM

Part	Termination	Pitch - Mating	Pitch - Mating	Features	Style	Connector Type	Contact Finish - Post	Mounting Type	Contact Shape	Contact Length - Post [x]	Contact Length - Post	Insulation Height	Insulation Height	Contact Material	Insulation Material	Number of Rows	Number of Positions	Applications	Contact Type	Insulation Color	Shrouding	Fastening Type	Number of Positions Loaded
TE Connectivity AMP Connectors 936287-2	Solder	0.1 in	2.54 mm	Board Guide	Board to Cable/Wire	Header	Tin-Lead	Through Hole, Right Angle	Square	0.11 in	2.79 mm	7.4 mm	0.291 in	Phosphor Bronze	Polybutylene Terephthalate (PBT), Glass Filled	1	6	Automotive	Male Pin	Natural	Shrouded - 4 Wall	Friction Lock	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
