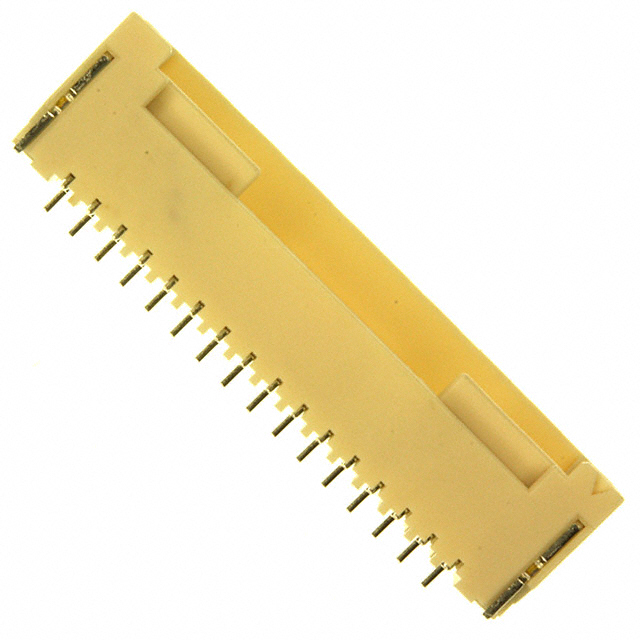

SM16B-ZESS-TB

Active

JST Sales America Inc.

CONN HEADER SMD R/A 16POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 16POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM16B-ZESS-TB

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Features	Solder Retention
Insulation Color	Natural
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Connector Type	Shrouding	Number of Rows	Number of Positions Loaded	Voltage Rating	Current Rating (Amps)	Termination	Contact Material	Contact Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Shape	Insulation Color	Insulation Material	Style	Mounting Type	Fastening Type	Insulation Height	Insulation Height	Number of Positions	Contact Finish - Post
JST Sales America Inc. SM16B-ZESS-TB	Header	Shrouded - 4 Wall	1	All	100 V	2 A	Solder	Copper Alloy	Outer Shroud Contact	UL94 V-0	-25 °C	85 °C	Solder Retention	Rectangular	Natural	Nylon Polyamide (PA)	Board to Cable/Wire	Surface Mount Right Angle	Locking Ramp	5.8 mm	0.228 in	16	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 16 position 0.059" (1.50mm)
