AD-SMAJHDEFIP-1

Active

Amphenol RF

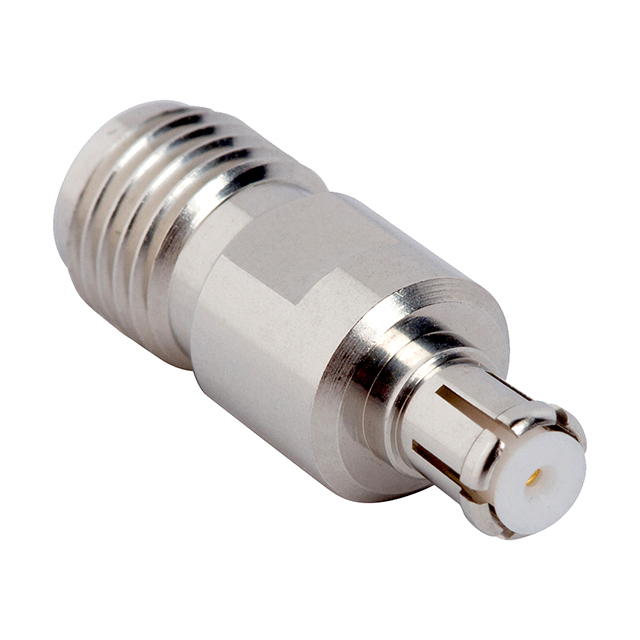

RF / COAXIAL ADAPTER, SMA, JACK, MICROMINIATURE COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

AD-SMAJHDEFIP-1

Active

Amphenol RF

RF / COAXIAL ADAPTER, SMA, JACK, MICROMINIATURE COAXIAL, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AD-SMAJHDEFIP-1

Adapter Series	SMA to EFI, HD
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	EFI, Female Socket, HD Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-In, Threaded
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

AD-SMA Series

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Conversion Type	Adapter Series	Features	Center Gender	Center Contact Material	Center Contact Plating	Mounting Type	Convert From (Adapter End)	Dielectric Material	Body Finish	Frequency - Max [Max]	Adapter Type	Body Material	Impedance	Style	Convert To (Adapter End)	Fastening Type
Amphenol RF AD-SMAJHDEFIJ-1	50 500	-55 °C	125 °C	Between Series	SMA to EFI HD	Limited Detent	Female to Female	Beryllium Copper	Gold	Free Hanging (In-Line)	Female Socket SMA Jack	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	White Bronze	6000 MHz	Jack to Jack	Brass	50 Ohms	Straight	EFI HD Jack Male Pin	Snap-In Threaded
Amphenol RF AD-SMAPSMAJ-2	500	-65 ░C	165 °C	Same Series	SMA to SMA			Brass	Gold	Free Hanging (In-Line) Right Angle	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Gold	22 GHz	Plug to Jack	Brass	50 Ohms	Right Angle	Male Pin SMA Plug
Amphenol RF AD-SMAJSMPJ-3	500	-65 ░C	165 °C	Between Series	SMA to SMP	Limited Detent		Beryllium Copper	Gold	Free Hanging (In-Line)	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)			Jack to Jack	Stainless Steel	50 Ohms	Straight	Male Pin SMP Jack	Snap-On Threaded
Amphenol RF AD-SMAJHDEFIP-1		-55 °C	125 °C	Between Series	SMA to EFI HD			Beryllium Copper	Gold	Free Hanging (In-Line)	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	White Bronze	6000 MHz	Plug to Jack	Beryllium Copper	50 Ohms	Straight	EFI Female Socket HD Plug	Snap-In Threaded
Amphenol RF AD-SMAPSMAP-2	500	-65 ░C	165 °C	Same Series	SMA to SMA		Male to Male	Beryllium Copper	Gold	Free Hanging (In-Line) Right Angle	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)	Gold	22 GHz	Plug to Plug	Brass	50 Ohms	Right Angle	Male Pin SMA Plug
Amphenol RF AD-SMAJHDEFIJ-2		-65 ░C	165 °C	Between Series	SMA to EFI HD	Smooth Bore	Female to Female	Beryllium Copper	Gold	Free Hanging (In-Line)	Female Socket SMA Jack	Polyetheretherketone (PEEK) Polytetrafluoroethylene (PTFE)	White Bronze	6000 MHz	Jack to Jack	Brass	50 Ohms	Straight	EFI HD Jack Male Pin	Snap-In Threaded
Amphenol RF AD-SMAPAMC4J-1		-65 ░C	165 °C	Between Series	SMA to AMC4			Brass	Gold	Free Hanging (In-Line)	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)		6000 MHz	Plug to Jack	Stainless Steel	50 Ohms	Straight	AMC4 Jack Female Socket
Amphenol RF AD-SMAJSMPP-1				Between Series	SMA to SMP			Beryllium Copper	Gold	Free Hanging (In-Line)	Female Socket SMA Jack	Polytetrafluoroethylene (PTFE)	Gold	18 GHz	Plug to Jack	Beryllium Copper	50 Ohms	Straight		Snap-On Threaded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.11
		10	$ 31.62
		25	$ 30.26
		50	$ 29.28
		100	$ 28.30
		250	$ 26.74
Newark	Each	25	$ 48.11
		50	$ 45.48
		100	$ 43.38
		250	$ 39.44

Description

General part information

AD-SMA Series

Adapter Coaxial Connector SMA Jack, Female Socket To EFI, HD Plug, Female Socket 50 Ohms
