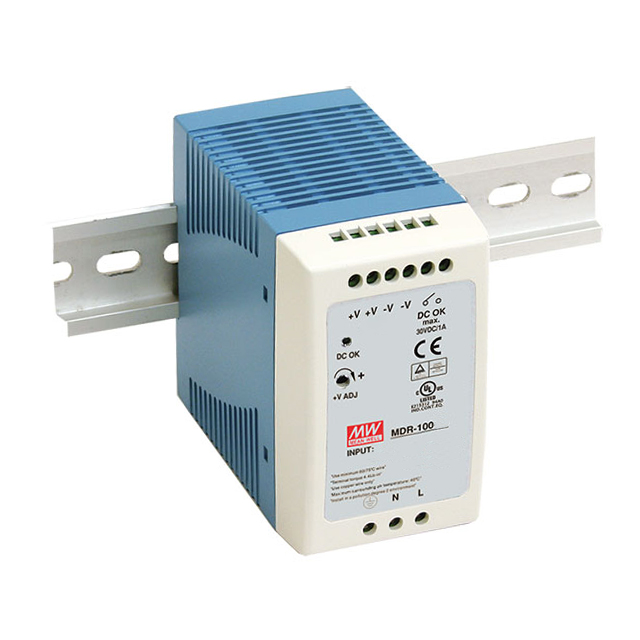

MDR-100-12

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 12V 90W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC DIN RAIL SUPPLY 12V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	MDR-100-12

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	Industrial, ITE (Commercial)
Approval Agency	CCC, cURus, TUV
Current - Output (Max) [Max]	7.5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	83 %
Features	Adjustable Output, Universal Input
Input Type	AC or DC
Minimum Load Required	False
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	90 W
Size / Dimension [x]	100 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	2.17 in
Size / Dimension [y]	55 mm
Size / Dimension [z]	3.54 "
Size / Dimension [z]	90 mm
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Applications	DC Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	DC Voltage - Input (Max) [Max]	Number of Outputs	Minimum Load Required	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Efficiency	Features
MEAN WELL USA Inc. MDR-100-48	Industrial ITE (Commercial)	120 V	3.54 "	100 mm	2.17 in	55 mm	90 mm	3.94 in	-10 °C	60 °C	370 V	1		CCC cURus TUV	96 W	2 A	3000 V	48 V	85 VAC	264 VAC	AC or DC	87 %	Adjustable Output Universal Input
MEAN WELL USA Inc. MDR-100-12	Industrial ITE (Commercial)	120 V	3.54 "	100 mm	2.17 in	55 mm	90 mm	3.94 in	-10 °C	60 °C	370 V	1		CCC cURus TUV	90 W	7.5 A	3000 V	12 V	85 VAC	264 VAC	AC or DC	83 %	Adjustable Output Universal Input
