1-822473-4

Obsolete

TE Connectivity AMP Connectors

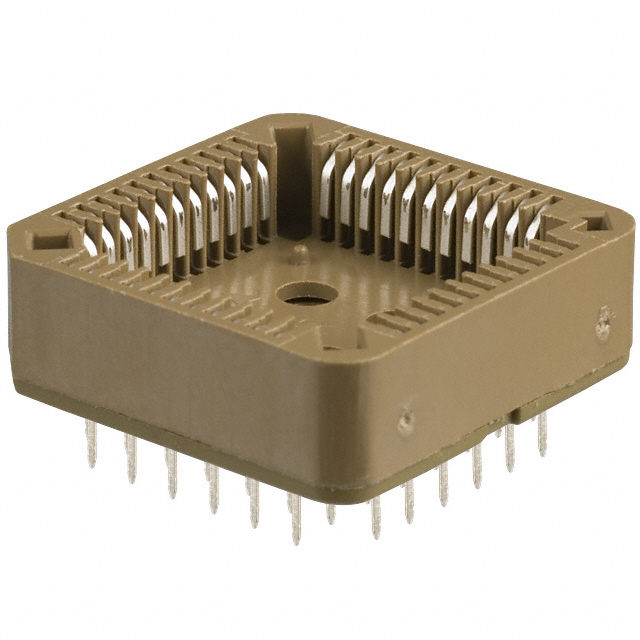

CONN SOCKET PLCC 44POS TIN

Deep-Dive with AI

Search across all available documentation for this part.

1-822473-4

Obsolete

TE Connectivity AMP Connectors

CONN SOCKET PLCC 44POS TIN

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

822473 Series

44 (4 x 11) Pos PLCC Socket Tin Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1-822473-4	822473 Series

Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	-	2.54 çm
Contact Finish Thickness - Mating	-	100 çin
Contact Finish Thickness - Post	-	2.54 µm
Contact Finish Thickness - Post	-	100 µin
Contact Material - Mating	Phosphor Bronze	Phosphor Bronze
Contact Material - Post	Phosphor Bronze	Phosphor Bronze
Features	Closed Frame	Closed Frame
Housing Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	44	44
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	68
Number of Positions or Pins (Grid)	-	5 - 17
Number of Positions or Pins (Grid)	-	20
Number of Positions or Pins (Grid) [custom]	4, 11	4 - 11
Pitch - Mating	0.05 in	0.05 in
Pitch - Mating	1.27 mm	1.27 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Type	PLCC	PLCC

822473 Series

CONN SOCKET PLCC 52POS TIN

Part	Housing Material	Mounting Type	Contact Finish - Post	Termination	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Type	Contact Material - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Pitch - Post	Pitch - Post	Contact Material - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Mating	Number of Positions or Pins (Grid) [custom]
TE Connectivity AMP Connectors 1-822473-5	Thermoplastic	Through Hole	Tin	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze	2.54 µm	100 µin	Closed Frame	2.54 mm	0.1 in	Phosphor Bronze	2.54 çm	100 çin
TE Connectivity AMP Connectors 1-822473-7	Thermoplastic	Through Hole	Tin	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze	2.54 µm	100 µin	Closed Frame	2.54 mm	0.1 in	Phosphor Bronze	2.54 çm	100 çin
TE Connectivity AMP Connectors 1-822473-4	Thermoplastic	Through Hole	Tin	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze			Closed Frame	2.54 mm	0.1 in	Phosphor Bronze			4, 11	44
TE Connectivity AMP Connectors 1-822473-6	Thermoplastic	Through Hole	Tin	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze			Closed Frame	2.54 mm	0.1 in	Phosphor Bronze					4	68	17
TE Connectivity AMP Connectors 822473-4	Thermoplastic	Through Hole	Tin-Lead	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze			Closed Frame	2.54 mm	0.1 in	Phosphor Bronze			4, 11	44				Tin-Lead
TE Connectivity AMP Connectors 1-822473-1	Thermoplastic	Through Hole	Tin	Solder	0.05 in	1.27 mm	UL94 V-0	PLCC	Phosphor Bronze	2.54 µm	100 µin	Closed Frame	2.54 mm	0.1 in	Phosphor Bronze	2.54 çm	100 çin			4		5		20
