PT10LH01-103A2020-S
ActiveAmphenol Piher Sensing Systems

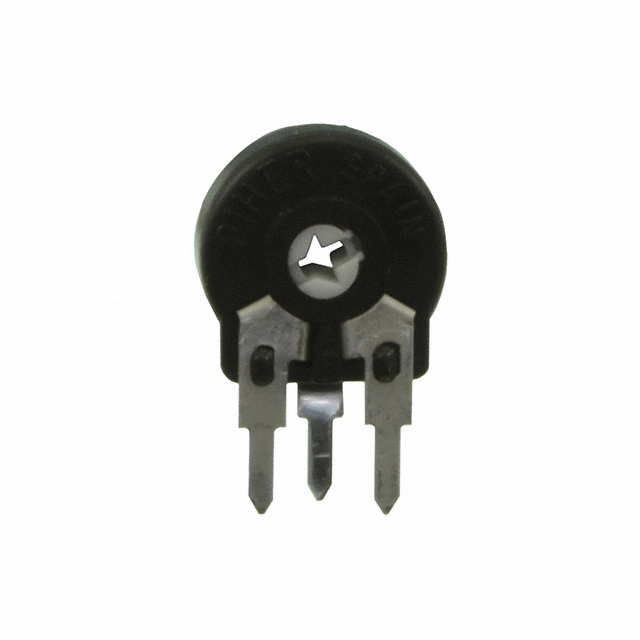

TRIMMER 10KOHM 0.15W PC PIN SIDE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PT10LH01-103A2020-S
ActiveAmphenol Piher Sensing Systems
TRIMMER 10KOHM 0.15W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT10LH01-103A2020-S | PT10LH01 Series |
|---|---|---|
| Adjustment Type | Side Adjustment | Side Adjustment |
| Mounting Type | Through Hole | Through Hole |
| Number of Turns | 1 | 1 |
| Power (Watts) | 150 mW | 150 mW |
| Resistance | 10000 Ohms | 1 - 10000 kOhms |
| Resistive Material | Carbon | Carbon |
| Size / Dimension | Round | Round |
| Size / Dimension [diameter] | 0.406 in | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm | 10.3 mm |
| Temperature Coefficient | 300 ppm/°C | 300 ppm/°C |
| Termination Style | PC Pins | PC Pins |
| Tolerance | 20 % | 20 - 30 % |
PT10LH01 Series
TRIMMER 47KOHM 0.15W PC PIN SIDE
| Part | Tolerance | Power (Watts) | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension | Resistance | Resistive Material | Adjustment Type | Number of Turns | Termination Style | Temperature Coefficient |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Piher Sensing Systems PT10LH01-473A2020-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 47 kOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-504A2020-PM-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C | |
Amphenol Piher Sensing Systems PT10LH01-202A2020-PM-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 2 kOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-255A3030-S | 30 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 2.5 MOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-101A2020-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 100 Ohms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-503A2020-PM-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 50 kOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-201A2020-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 200 Ohms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-505A3030-S | 30 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 5 MOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-501A2020-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 500 Ohms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Amphenol Piher Sensing Systems PT10LH01-104A2020-S | 20 % | 150 mW | Through Hole | 0.406 in | 10.3 mm | Round | 100 kOhms | Carbon | Side Adjustment | 1 | PC Pins | 300 ppm/°C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 0.59 | |
| 10 | $ 0.47 | |||
| 25 | $ 0.44 | |||
| 50 | $ 0.41 | |||
| 100 | $ 0.38 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.31 | |||
| 5000 | $ 0.26 | |||
Description
General part information
PT10LH01 Series
10 kOhms 0.15W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
