C5039.41.01

Active

Prysmian Group

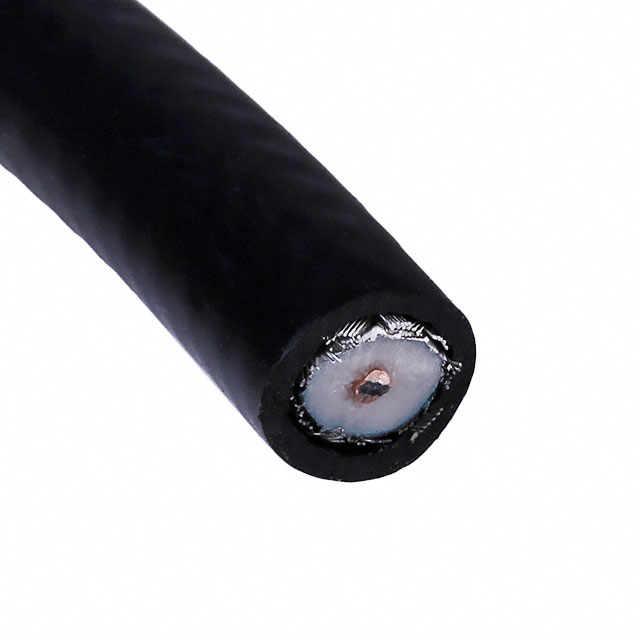

CABLE COAXIAL RG11 14AWG 100'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE COAXIAL RG11 14AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	C5039.41.01

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	10.03 mm
Jacket (Insulation) Diameter [diameter]	0.395 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Length [x]	100 ft
Length [x]	30.48 m
Shield Coverage	60%, 100%
Shield Material	Flexfoil®, Aluminum
Shield Type	Foil, Braid
Usage	CATV
VoP, Velocity of Propagation	85
Wire Gauge	13.5 AWG
Wire Gauge	2.08 mm˛

Part	Shield Type	Impedance	VoP, Velocity of Propagation	Length	Length	Conductor Strand	Shield Material	Shield Coverage	Conductor Material	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Wire Gauge	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Usage	Cable Type	Jacket Color	Wire Gauge	Length [x]	Length [x]
Prysmian Group C5039.41.02	Braid Foil	75 Ohms	85	304.8 m	1000 ft	Solid	Flexfoil® Aluminum	100% 60%	Copper Coated Steel	RG-11	10.03 mm	0.395 "	Poly-Vinyl Chloride (PVC)	14 AWG	2.08 mm²	0.28 in	7.11 mm	CATV	Coaxial
Prysmian Group C5039.41.01	Braid Foil	75 Ohms	85	304.8 m	1000 ft	Solid	Flexfoil® Aluminum	100% 60%	Copper Coated Steel	RG-11	10.03 mm	0.395 "	Poly-Vinyl Chloride (PVC)		13.5 AWG	0.28 in	7.11 mm	CATV	Coaxial	Black	2.08 mm˛	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 14 AWG (2.08mm˛) RG-11 100.0' (30.48m) 75 Ohms

Technical documentation and resources

No documents available
