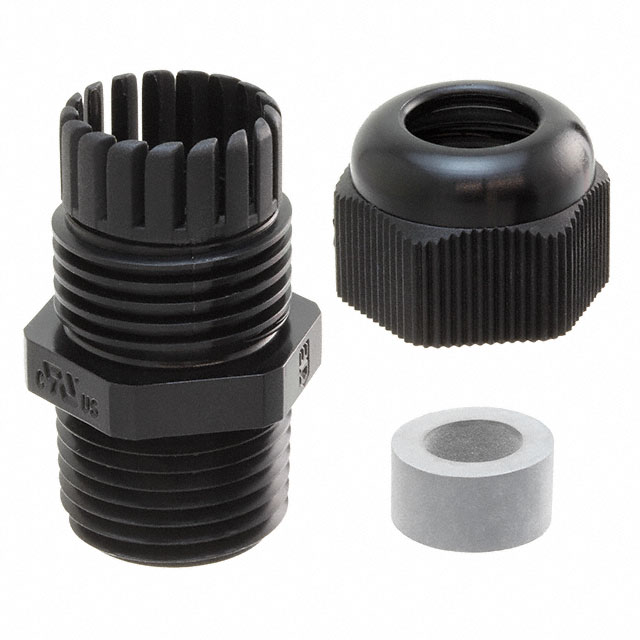

CG-M25-1-BK

Active

Essentra Access Solutions

CABLE GLAND 7.87-17.02MM M25

Search across all available documentation for this part.

Active

Essentra Access Solutions

CABLE GLAND 7.87-17.02MM M25

Technical Specifications

Parameters and characteristics for this part

Specification	CG-M25-1-BK

Color	Black
Includes	Sealing Nut, Inner and Outer Sealing Gland
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	17.02 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.67 in
Outside Cable Diameter (Min) [Min]	0.31 in
Outside Cable Diameter (Min) [Min]	7.87 mm
Panel Hole Size	25.2 mm
Panel Hole Size	0.992 in
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M25x1.5
Type	Cable Gland

Part	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Type	Ingress Protection	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Panel Hole Size	Panel Hole Size	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Essentra Access Solutions CG-M25-1-BK	Inner and Outer Sealing Gland Sealing Nut	100 °C	-20 C	M25x1.5	Polyamide (PA) Nylon	Cable Gland	IP68 - Dust Tight Waterproof	Black	17.02 mm	0.67 in	25.2 mm	0.992 in	8 mm	0.315 in	0.31 in	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon M25x1.5 Black
