387-026-521-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-026-521-802
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 26POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-026-521-802 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-026 Series
...
| Part | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Card Type | Material - Insulation | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Finish | Termination | Number of Rows | Contact Material | Termination Rows | Number of Positions/Bay/Row [custom] | Contact Type | Pitch [x] | Pitch [x] | Color | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Wire Wrap | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Single | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 1 | Copper Alloy | 1 | 26 | Cantilever | 0.156 in | 3.96 mm | Black | |||
EDAC Inc. | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | Card Extender | ||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 0.116 in | Floating Bobbin Top Mount Opening | 2.95 mm | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | |||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Wire Wrap | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | |||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Wire Wrap | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | |||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Flush Mount Threaded Insert Top Opening | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | |||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Dual Edge | Polyester Thermoplastic | Dual | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 2 | Copper Alloy | 2 | 13 | Cantilever | 0.156 in | 3.96 mm | Black | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | Single | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Solder | 1 | Copper Alloy | 1 | 26 | Cantilever | 0.156 in | 3.96 mm | Black | |||||
EDAC Inc. | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Non Specified - Single Edge | Polyester Thermoplastic | Single | -40 °C | 105 ░C | 26 | 10 Áin | 0.25 Ám | Female | Gold | Wire Wrap | 1 | Copper Alloy | 1 | 26 | Cantilever | 0.156 in | 3.96 mm | Black | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 10.34 | |
Description
General part information
387-026 Series

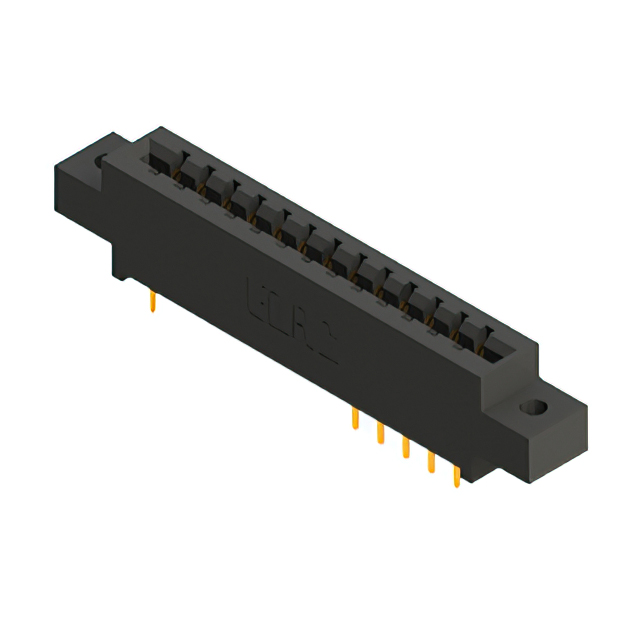

26 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
