MAX9880AEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT MAX9880A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX9880AEVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT MAX9880A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9880AEVKIT# | MAX9880 Series |
|---|---|---|
| Data Interface | - | Serial, I2C, I2S, SPI™ |
| Dynamic Range, ADCs / DACs (db) Typ | - | 82 db |
| Dynamic Range, ADCs / DACs (db) Typ | - | 96 db |
| Function | CODEC | CODEC |
| Mounting Type | - | Surface Mount |
| Number of ADCs / DACs | - | 2 |
| Number of ADCs / DACs | - | 2 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 48-WFQFN Exposed Pad |
| Secondary Attributes | USB Powered | USB Powered |
| Sigma Delta | - | True |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 48-WLP (2.57x3.35), 48-TQFN (6x6) |
| Type | Audio | Stereo Audio, Audio |
| Utilized IC / Part | MAX9880A | MAX9880A |
| Voltage - Supply, Analog | - | 1.95 V |
| Voltage - Supply, Analog | - | 1.65 V |
| Voltage - Supply, Digital | - | 1.95 V |
| Voltage - Supply, Digital | - | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 65.62 | |
MAX9880 Series
IC CODEC AUDIO STEREO 48WLP
| Part | Type | Supplier Device Package | Dynamic Range, ADCs / DACs (db) Typ [custom] | Dynamic Range, ADCs / DACs (db) Typ [custom] | Mounting Type | Data Interface | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Number of ADCs / DACs [custom] | Number of ADCs / DACs [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Sigma Delta | Voltage - Supply, Analog [Max] | Voltage - Supply, Analog [Min] | Package / Case | Function | Supplied Contents | Utilized IC / Part | Secondary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9880AEWM+T | Stereo Audio | 48-WLP (2.57x3.35) | 82 db | 96 db | Surface Mount | I2C, I2S, Serial, SPI™ | 1.95 V | 1.65 V | 2 | 2 | 85 °C | -40 °C | 1.95 V | 1.65 V | ||||||
Analog Devices Inc./Maxim Integrated MAX9880AETM+T | Stereo Audio | 48-TQFN (6x6) | 82 db | 96 db | Surface Mount | I2C, I2S, Serial, SPI™ | 1.95 V | 1.65 V | 2 | 2 | 85 °C | -40 °C | 1.95 V | 1.65 V | 48-WFQFN Exposed Pad | |||||
Analog Devices Inc./Maxim Integrated MAX9880AEVKIT# | Audio | CODEC | Board(s) | MAX9880A | USB Powered | |||||||||||||||
Analog Devices Inc./Maxim Integrated MAX9880AETM+ | Stereo Audio | 48-TQFN (6x6) | 82 db | 96 db | Surface Mount | I2C, I2S, Serial, SPI™ | 1.95 V | 1.65 V | 2 | 2 | 85 °C | -40 °C | 1.95 V | 1.65 V | 48-WFQFN Exposed Pad |
Description
General part information
MAX9880 Series

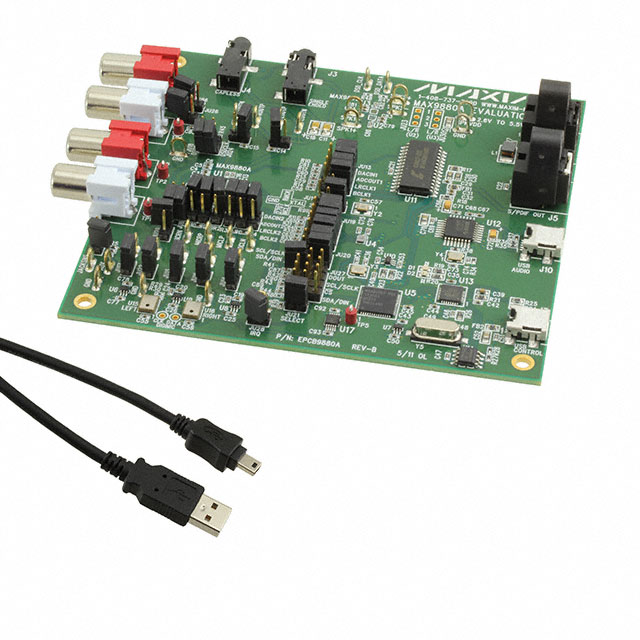

MAX9880A CODEC Audio Evaluation Board
Documents
Technical documentation and resources
