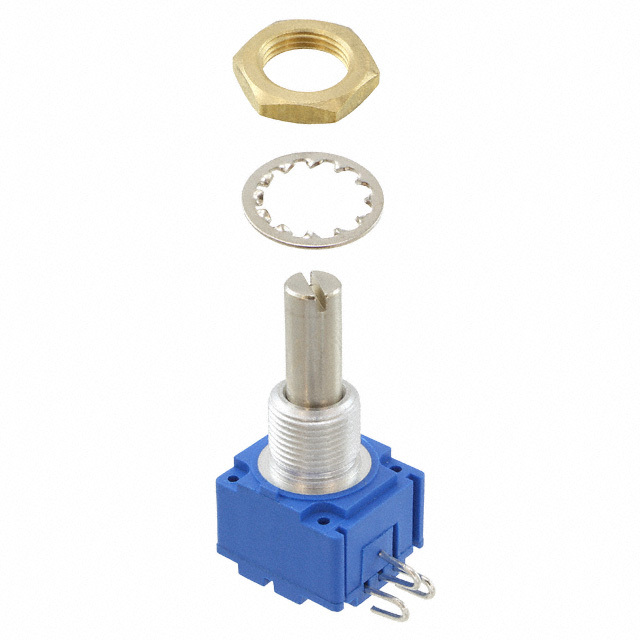

92R1A-R22-B13L

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CP /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Resistive Material	Actuator Length [z]	Actuator Length [z]	Temperature Coefficient	Resistance (Ohms)	Taper	Bushing Thread	Number of Gangs	Actuator Type	Built in Switch	Tolerance	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Power (Watts)	Termination Style	Number of Turns	Rotation	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]
Bourns Inc. 92R1A-R22-B13L	User Defined	Conductive Plastic	0.866 in	22 mm	1000 ppm/°C	5 kOhms	Linear	M10	1	Slotted		20 %	0.236 in	6 mm	1 W	Solder Hook	1	300 ░	0.687 in	0.625 in	17.45 mm	15.88 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Hook
