704.900.5
ActiveEAO

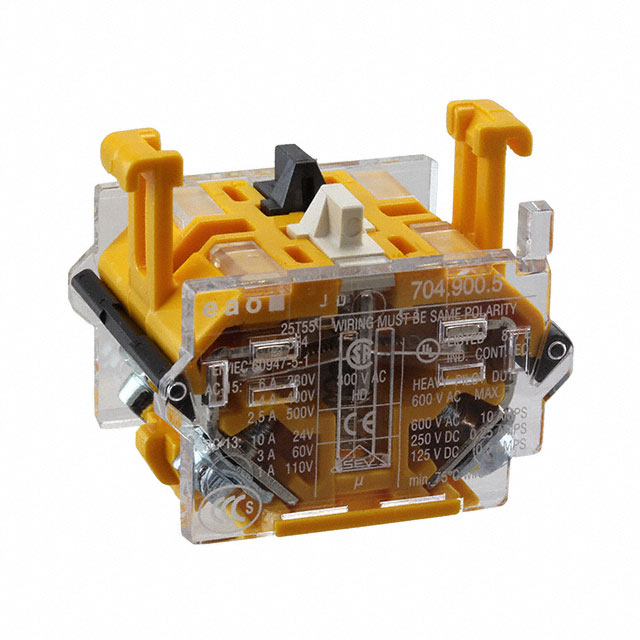

CONTACT BLOCKS N.O./N.C. SPST/SPST SCREW 10A 500VAC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.900.5
ActiveEAO
CONTACT BLOCKS N.O./N.C. SPST/SPST SCREW 10A 500VAC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.900.5 | 704.900 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Circuit | DPST-NO/NC | DPST-NC, DPST-NO, SPST-NC, DPST-NO/NC, SPST-NO |
| Contact Rating @ Voltage | 500 VAC, 10 A | 10 - 500 VAC |
| Requires | Switch Body | Switch Body |
| Termination Style | Screw Terminal | Screw Terminal |
704.900 Series
CONTACT BLOCK, 10 A, 500 V, SNAP-ACTION, 2 POLE, SCREW, DPDT-2NC
| Part | Requires | Circuit | (Select First, Then Apply Filters) Compatible Series | Contact Rating @ Voltage | Termination Style |
|---|---|---|---|---|---|
EAO 704.900.4 | Switch Body | DPST-NC | 04, EAO | 10 A, 500 VAC | Screw Terminal |
EAO 704.900.3 | Switch Body | DPST-NO | 04, EAO | 10 A, 500 VAC | Screw Terminal |
EAO 704.900.2 | Switch Body | SPST-NC | 04, EAO | 10 A, 500 VAC | Screw Terminal |
EAO 704.900.5 | Switch Body | DPST-NO/NC | 04, EAO | 10 A, 500 VAC | Screw Terminal |
EAO 704.900.1 | Switch Body | SPST-NO | 04, EAO | 10 A, 500 VAC | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.75 | |
| 10 | $ 15.01 | |||
| 25 | $ 14.35 | |||
| 50 | $ 13.61 | |||
| 100 | $ 13.12 | |||
| 250 | $ 12.29 | |||
| 500 | $ 11.38 | |||
Description
General part information
704.900 Series
Configurable Contact Block DPST-NO/NC 10A @ 500VAC
Documents
Technical documentation and resources
