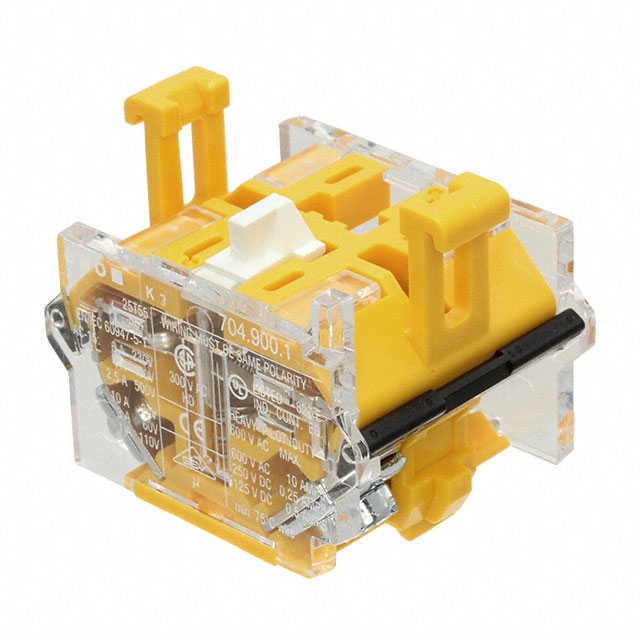

704.900.1

Active

EAO

CONTACT BLOCK SPST-NO 10A 500V

Search across all available documentation for this part.

Active

EAO

CONTACT BLOCK SPST-NO 10A 500V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	704.900.1	704.900 Series

(Select First, Then Apply Filters) Compatible Series	04, EAO	04, EAO
Circuit	SPST-NO	DPST-NC, DPST-NO, SPST-NC, DPST-NO/NC, SPST-NO
Contact Rating @ Voltage	500 VAC, 10 A	10 - 500 VAC
Requires	Switch Body	Switch Body
Termination Style	Screw Terminal	Screw Terminal

CONTACT BLOCK, 10 A, 500 V, SNAP-ACTION, 2 POLE, SCREW, DPDT-2NC

Part	Requires	Circuit	(Select First, Then Apply Filters) Compatible Series	Contact Rating @ Voltage	Termination Style
EAO 704.900.4	Switch Body	DPST-NC	04, EAO	10 A, 500 VAC	Screw Terminal
EAO 704.900.3	Switch Body	DPST-NO	04, EAO	10 A, 500 VAC	Screw Terminal
EAO 704.900.2	Switch Body	SPST-NC	04, EAO	10 A, 500 VAC	Screw Terminal
EAO 704.900.5	Switch Body	DPST-NO/NC	04, EAO	10 A, 500 VAC	Screw Terminal
EAO 704.900.1	Switch Body	SPST-NO	04, EAO	10 A, 500 VAC	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Contact Block SPST-NO 10A @ 500VAC
