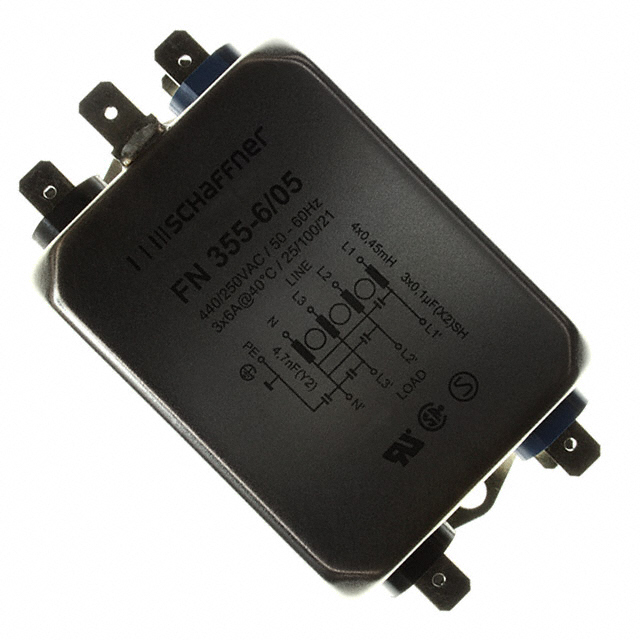

FN355-6-05

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 6A CHASSIS MOUNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 6A CHASSIS MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	FN355-6-05

Applications	General Purpose
Approval Agency	UR, SEMKO, CSA
Configuration	Single Stage
Current	6 A
Filter Type	Three Phase (Wye)
Frequency - Operating	400 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC (Phase to Ground/Neutral)	250 V
Voltage - Rated AC (Phase to Phase)	440 V

Part	Voltage - Rated AC (Phase to Phase)	Filter Type	Frequency - Operating	Approval Agency	Termination Style	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Operating Temperature [custom]	Mounting Type	Current	Configuration
TE Connectivity Raychem Cable Protection FN355-6-05	440 V	Three Phase (Wye)	400 Hz	CSA SEMKO UR	Quick Connect	250 V	General Purpose	-25 °C 100 °C	Chassis Mount	6 A	Single Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 40.71

General part information

Three Phase (Wye) EMC/EMI Line Filter 6 A DC ~ 400Hz Single Stage Quick Connect
