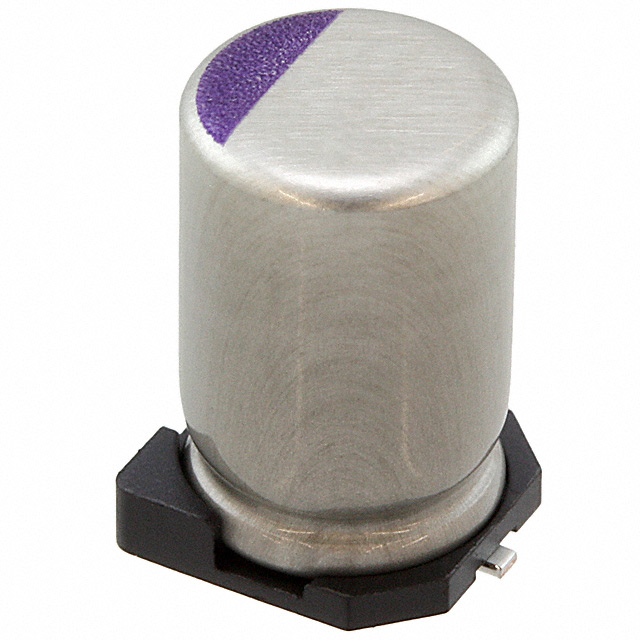

2SVPE1200M

Active

Panasonic Industrial Automation Sales

OSCON,SVPE SERIES ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

OSCON,SVPE SERIES ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	2SVPE1200M

Applications	General Purpose
Capacitance	1.2 mF
ESR (Equivalent Series Resistance)	8 mOhms
Height - Seated (Max) [Max]	0.394 in
Height - Seated (Max) [Max]	10 mm
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	5.23 A
Ripple Current @ Low Frequency	261.5 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	2.5 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Mounting Type	Ripple Current @ Low Frequency	Lifetime @ Temp.	Ripple Current @ High Frequency	Applications	Capacitance	Tolerance	Package / Case	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Type
Panasonic Industrial Automation Sales 2SVPE1200M	105 ░C	-55 °C	0.26 in	6.6 mm	6.6 mm	0.26 in	Surface Mount	261.5 mA	2000 Hrs	5.23 A	General Purpose	1.2 mF	20 %	Radial Can - SMD	2.5 V	0.394 in	10 mm	0.248 in	6.3 mm	8 mOhms	Polymer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

OSCON,SVPE SERIES ROHS COMPLIANT: YES
