1550JBK

Active

Hammond Manufacturing

BOX ALUM BLACK 10.83"L X 6.89"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX ALUM BLACK 10.83"L X 6.89"W

Technical Specifications

Parameters and characteristics for this part

BOX ALUM BLACK 10.83"L X 6.89"W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Design	Material	Thickness	Thickness	Container Type	Ratings	Area (L x W)	Area (L x W)	Height [z]	Height [z]
Hammond Manufacturing 1550JBK	10.827 in	175 mm	6.89 in	275 mm	Black	Cover Included	Aluminum	0.098 in	2.49 mm	Box	IP54	74.5 in²	481 cm²	66.6 mm	2.622 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

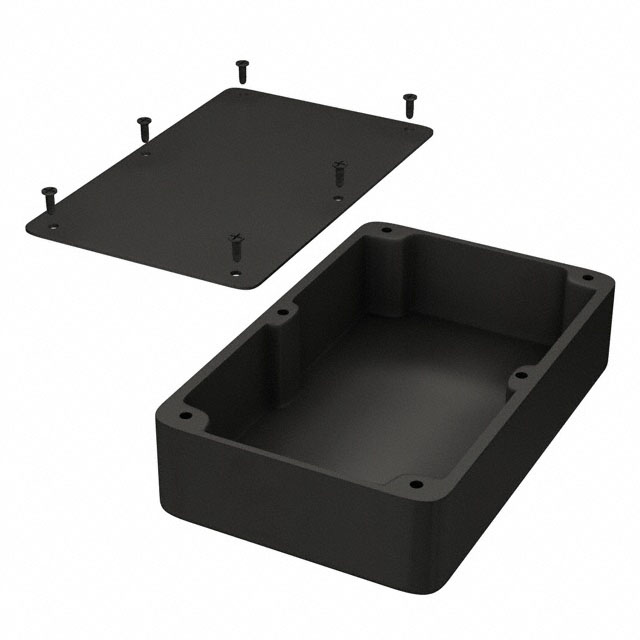

Box Aluminum Black Cover Included 10.827" L x 6.890" W (275.00mm x 175.00mm) X 2.622" (66.60mm)

Technical documentation and resources

No documents available
