BQ24163EVM-742

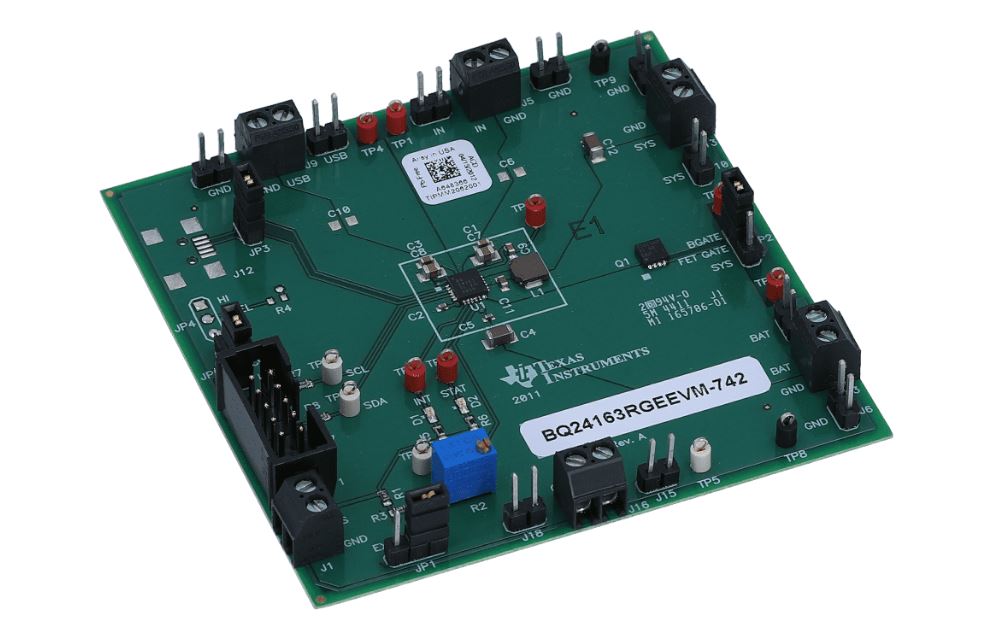

ActiveEVAL MODULE FOR BQ24163-742
Deep-Dive with AI
Search across all available documentation for this part.
BQ24163EVM-742
ActiveEVAL MODULE FOR BQ24163-742
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24163EVM-742 | BQ24163 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 3.4 V |
| Charge Current - Max | - | 2.5 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-VFQFN Exposed Pad, DSBGA, 49-UFBGA |
| Primary Attributes | Li-Ion (1 Cell) | Li-Ion (1 Cell) |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (4x4), 49-DSBGA (2.8x2.8) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24163 | BQ24163 |
| Voltage - Supply (Max) | - | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 104.54 | |
BQ24163 Series
I2C 1cell 2.5A Buck battery charger with dual-input, Power Path and 3.2V Vsysmin
| Part | Supplier Device Package | Battery Chemistry | Voltage - Supply (Max) [Max] | Charge Current - Max [Max] | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Battery Pack Voltage | Number of Cells | Current - Charging | Package / Case | Interface | Mounting Type | Secondary Attributes | Primary Attributes | Type | Supplied Contents | Embedded | Function | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24163RGET | 24-VQFN (4x4) | Lithium Ion/Polymer | 10 V | 2.5 A | Over Temperature, Over Voltage | 85 °C | -40 °C | 3.4 V | 1 | Constant - Programmable | 24-VFQFN Exposed Pad | I2C | Surface Mount | |||||||
Texas Instruments BQ24163YFFT | 49-DSBGA (2.8x2.8) | Lithium Ion/Polymer | 10 V | 2.5 A | Over Temperature, Over Voltage | 85 °C | -40 °C | 3.4 V | 1 | Constant - Programmable | 49-UFBGA, DSBGA | I2C | Surface Mount | |||||||
Texas Instruments BQ24163RGER | 24-VQFN (4x4) | Lithium Ion/Polymer | 10 V | 2.5 A | Over Temperature, Over Voltage | 85 °C | -40 °C | 3.4 V | 1 | Constant - Programmable | 24-VFQFN Exposed Pad | I2C | Surface Mount | |||||||
Texas Instruments BQ24163YFFR | 49-DSBGA (2.8x2.8) | Lithium Ion/Polymer | 10 V | 2.5 A | Over Temperature, Over Voltage | 85 °C | -40 °C | 3.4 V | 1 | Constant - Programmable | 49-UFBGA, DSBGA | I2C | Surface Mount | |||||||
Texas Instruments BQ24163EVM-742 | I2C Interface(s) | Li-Ion (1 Cell) | Power Management | Board(s) | Battery Charger | BQ24163 |
Description
General part information
BQ24163 Series
The BQ24160, BQ24160A, BQ24161, BQ24161B, BQ24163, and BQ24168 are highly integrated single-cell Li-ion battery charger and system power path management devices targeted for space-limited, portable applications with high-capacity batteries. The single-cell charger has dual inputs which allow operation from either a USB port or a higher-power input supply (that is, AC adapter or wireless charging input) for a versatile solution. The two inputs are fully isolated from each other and are easily selectable using the I2C interface.
The power path management feature allows the BQ2416xx to power the system from a high-efficiency DC-DC converter while simultaneously and independently charging the battery. The power path management architecture enables the system to run with a defective or absent battery pack and enables instant system turnon even with a totally discharged battery or no battery.
The BQ24160, BQ24160A, BQ24161, BQ24161B, BQ24163, and BQ24168 are highly integrated single-cell Li-ion battery charger and system power path management devices targeted for space-limited, portable applications with high-capacity batteries. The single-cell charger has dual inputs which allow operation from either a USB port or a higher-power input supply (that is, AC adapter or wireless charging input) for a versatile solution. The two inputs are fully isolated from each other and are easily selectable using the I2C interface.
