MRAN206

Active

NKK Switches

SWITCH ROTARY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MRAN206

Active

NKK Switches

SWITCH ROTARY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MRAN206

Actuator Length [x]	10 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	30 °
Circuit per Deck [custom]	DP6T
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Non-Shorting
Current Rating (Amps)	250 mA
Depth Behind Panel	17 mm
Features	Process Sealed
Index Stops	Adjustable
Mounting Type	Through Hole, Panel Mount
Number of Decks [custom]	1
Number of Poles per Deck	2
Number of Positions [Max]	6
Number of Positions [Min]	2
Panel Cutout Dimensions [diameter]	0.25 in
Termination Style	PC Pin
Voltage Rating - AC	125 V

MRAN2 Series

Part	Features	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Index Stops	Actuator Length [x]	Circuit per Deck [custom]	Voltage Rating - AC	Number of Positions [Max]	Number of Positions [Min]	Number of Decks [custom]	Termination Style	Contact Timing	Number of Poles per Deck	Contact Material	Angle of Throw	Contact Finish	Mounting Type	Actuator Type	Depth Behind Panel	Actuator Type [diameter]
NKK Switches MRAN206-CA	Process Sealed	0.25 in	250 mA	Adjustable	15.8 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-A	Process Sealed	0.25 in	250 mA	Adjustable	13 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-BE	Process Sealed	0.25 in	250 mA	Adjustable	14.3 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-BA	Process Sealed	0.25 in	250 mA	Adjustable	14.3 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-BH	Process Sealed	0.25 in	250 mA	Adjustable	14.3 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-BG	Process Sealed	0.25 in	250 mA	Adjustable	14.3 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-CH	Process Sealed	0.25 in	250 mA	Adjustable	15.8 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206	Process Sealed	0.25 in	250 mA	Adjustable	10 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Flatted	17 mm	3.17 mm
NKK Switches MRAN206-BF	Process Sealed	0.25 in	250 mA	Adjustable	14.3 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm
NKK Switches MRAN206-CE	Process Sealed	0.25 in	250 mA	Adjustable	13 mm	DP6T	125 V	6	2	1	PC Pin	Non-Shorting	2	Copper	30 °	Silver	Panel Mount Through Hole	Knob	17 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.89
		10	$ 19.40
		25	$ 17.41
		50	$ 16.91
		100	$ 14.92
		250	$ 13.93
		500	$ 13.63

Description

General part information

MRAN2 Series

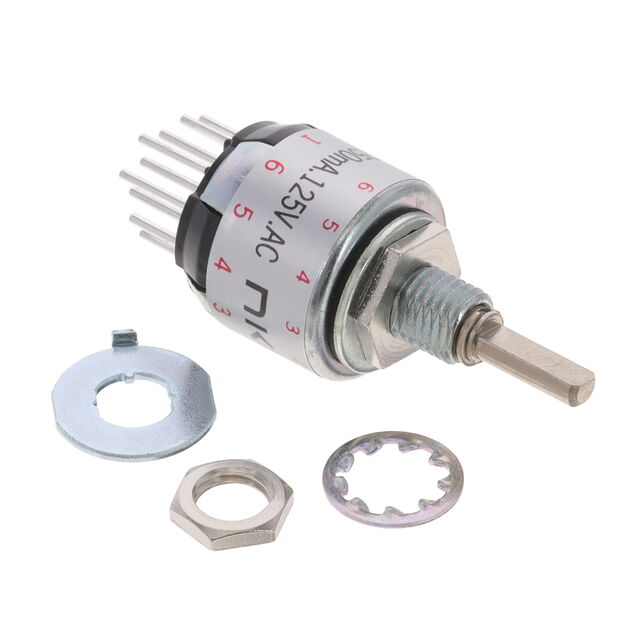

Rotary Switch 2 ~ 6 Position DP6T 250mA (AC) 125 VAC Panel Mount, Through Hole
