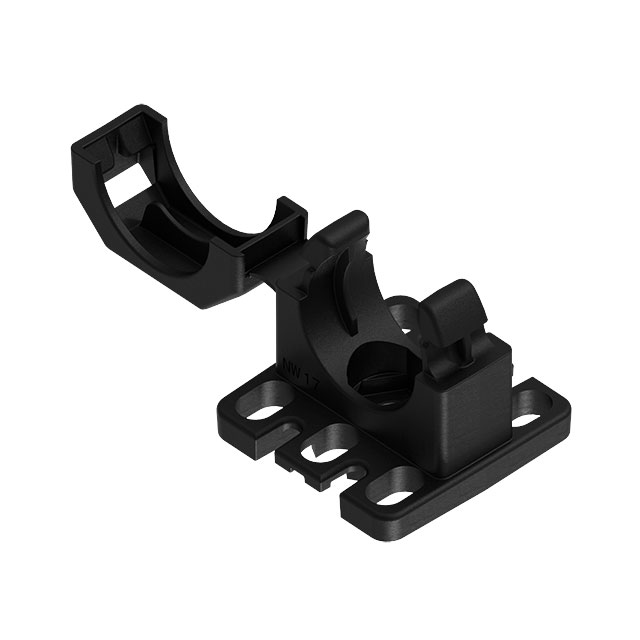

COPA-H-10B

Unknown

Fraenkische USA, LP

CBL CLIP C-TYPE BLACK FASTENER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

COPA-H-10B

Unknown

Fraenkische USA, LP

CBL CLIP C-TYPE BLACK FASTENER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	COPA-H-10B

Color	Black
Height [z]	25 mm
Height [z]	0.984 in
Length	0.866 "
Length	22 mm
Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Fastener
Panel Hole Size [diameter]	0.197 in
Panel Hole Size [diameter]	5 mm
Type	C-Type, Clip
Type Attributes	Hinged, Locking

COPA-H Series

Part	Height [z]	Height [z]	Color	Mounting Type	Panel Hole Size [diameter]	Panel Hole Size [diameter]	Opening Size	Opening Size	Width [x]	Width [x]	Length [x]	Length [x]	Material	Type	Type Attributes	Panel Hole Size	Panel Hole Size	Opening Size [custom]	Opening Size [custom]	Opening Size [x]	Opening Size [x]	Material Flammability Rating	Length	Length	Width	Width	Opening Size [z]	Opening Size [z]
Fraenkische USA, LP COPA-H-12B	27 mm	1.063 in	Black	Fastener	0.197 in	5 mm	0.472 in	11.99 mm	1.22 in	31 mm	1.024 "	26 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking
Fraenkische USA, LP COPA-H-36B	56 mm	2.205 "	Black	Fastener					2.362 in	60 mm	2.165 in	55 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in	36 mm	1.417 in
Fraenkische USA, LP COPA-H-29G	48 mm	1.89 in	Gray	Fastener					1.575 in	40 mm	1.831 "	46.5 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in			29 mm	1.142 in	UL94 V-0
Fraenkische USA, LP COPA-H-10G	25 mm	0.984 in	Gray	Fastener	0.197 in	5 mm			1.22 in	31 mm			Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking								0.866 "	22 mm
Fraenkische USA, LP COPA-H-36G	56 mm	2.205 "	Gray	Fastener					2.362 in	60 mm	2.165 in	55 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in	36 mm	1.417 in			UL94 V-0
Fraenkische USA, LP COPA-H-10B	25 mm	0.984 in	Black	Fastener	0.197 in	5 mm							Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking								0.866 "	22 mm
Fraenkische USA, LP COPA-H-17B	34 mm	1.339 in	Black	Fastener							1.398 "	35.52 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in								1.417 "	36 mm
Fraenkische USA, LP COPA-H-17G	34 mm	1.339 in	Gray	Fastener									Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in					UL94 V-0	1.398 in	35.5 mm	1.417 "	36 mm
Fraenkische USA, LP COPA-H-12G	27 mm	1.063 in	Gray	Fastener	0.197 in	5 mm	0.472 in	11.99 mm	1.22 in	31 mm	1.024 "	26 mm	Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking							UL94 V-0
Fraenkische USA, LP COPA-H-48G	68 mm	2.678 in	Gray	Fastener					2.362 in	60 mm			Polyamide (PA66) Nylon 6/6	C-Type Clip	Hinged Locking	5.99 mm	0.236 in					UL94 V-0		2.638 " 67 mm			48 mm	1.89 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.72
		10	$ 0.58
		30	$ 0.53
		50	$ 0.53
		100	$ 0.72
		250	$ 0.65
		500	$ 0.59
		1000	$ 0.57

Description

General part information

COPA-H Series

Cable Clip, C-Type Black Fastener 0.394" (10.00mm)
