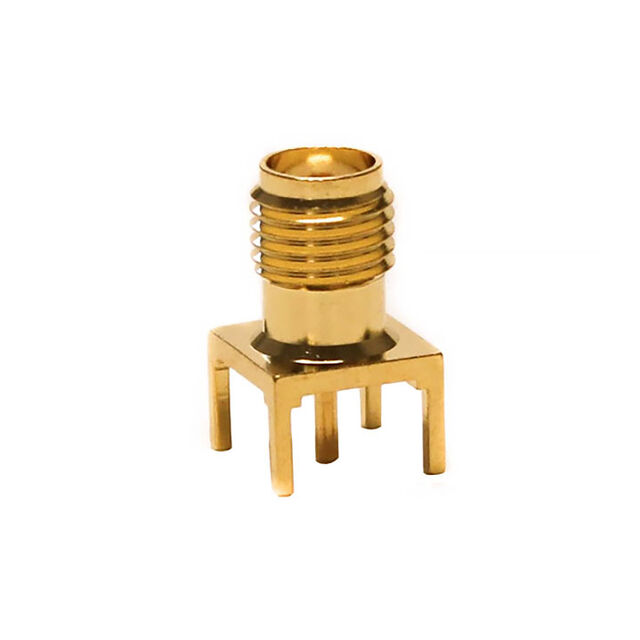

BU-1420701211

Active

Mueller Electric Co

CONN SMA JACK STR. 50 OHM EDGE M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BU-1420701211

Active

Mueller Electric Co

CONN SMA JACK STR. 50 OHM EDGE M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-1420701211

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

BU-14 Series

Part	Dielectric Material	Connector Type	Mounting Type	Center Contact Plating	Contact Termination	Impedance	Center Contact Material	Body Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Shield Termination	Connector Style	Voltage Rating	Body Finish	Number of Ports	Mounting Feature
Mueller Electric Co BU-1420761801	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch Panel Mount Right Angle	Gold	Solder	50 Ohms	Beryllium Copper	Brass	26.5 GHz	-65 ░C	150 °C	Gold	Solder	SMA	170 V	Gold	1
Mueller Electric Co BU-1420701491	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Panel Mount Through Hole	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1	Bulkhead - Front Side Nut
Mueller Electric Co BU-1420761811	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch Panel Mount Right Angle	Gold	Solder	50 Ohms	Beryllium Copper	Brass	26.5 GHz	-65 ░C	150 °C	Gold	Solder	SMA	170 V	Gold	1
Mueller Electric Co BU-1420761881	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch Panel Mount Right Angle	Gold	Solder	50 Ohms	Beryllium Copper	Brass	26.5 GHz	-65 ░C	150 °C	Gold	Solder	SMA	170 V	Gold	1
Mueller Electric Co BU-1420771831	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1
Mueller Electric Co BU-1420701301	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Through Hole Right Angle	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1
Mueller Electric Co BU-1420761851	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1
Mueller Electric Co BU-1420711841	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1
Mueller Electric Co BU-1420761891	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Board Edge End Launch Panel Mount Right Angle	Gold	Solder	50 Ohms	Beryllium Copper	Brass	26.5 GHz	-65 ░C	150 °C	Gold	Solder	SMA	170 V	Gold	1
Mueller Electric Co BU-1420701211	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Through Hole	Gold	Solder	50 Ohms	Beryllium Copper	Brass	18 GHz	-65 ░C	150 °C	Gold	Solder	SMA	335 V	Gold	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.79
		10	$ 3.09
		100	$ 2.95
		500	$ 2.85
		1000	$ 2.81

Description

General part information

BU-14 Series

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
