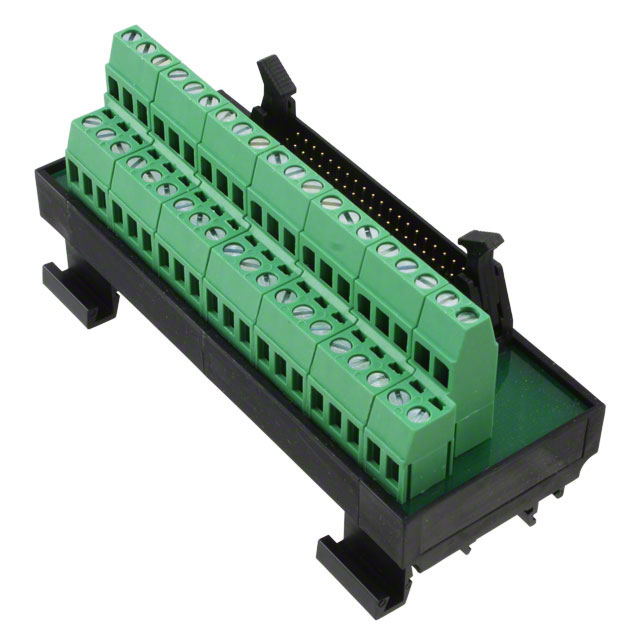

LIDC-40-M

Active

American Electrical Inc.

INTERFACE MOD HDR 40POS 14-22AWG

Search across all available documentation for this part.

Active

American Electrical Inc.

INTERFACE MOD HDR 40POS 14-22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	LIDC-40-M

Control Side Cable Retainer	Latches
Control Side Connection [custom]	Male
Control Side Connection [custom]	Rectangular
Current Rating (Per Contact) [z]	2 A
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Positions / Poles	40
Process Side Connection	Terminal Blocks - Screw Connection
Voltage - Rated	600 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

INTERFACE MOD HDR 40POS 14-22AWG

Part	Positions / Poles	Control Side Cable Retainer	Voltage - Rated	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Process Side Connection	Control Side Connection [custom]	Control Side Connection [custom]	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Per Contact) [z]
American Electrical Inc. LIDC-40-M	40	Latches	600 VDC	-10 °C	50 °C	Terminal Blocks - Screw Connection	Male	Rectangular	14 AWG	22 AWG	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 71.94

General part information

40 Position Interface Module Terminal Blocks - Screw Connection To Rectangular, Male 14-22 AWG
