2700131

Active

Phoenix Contact

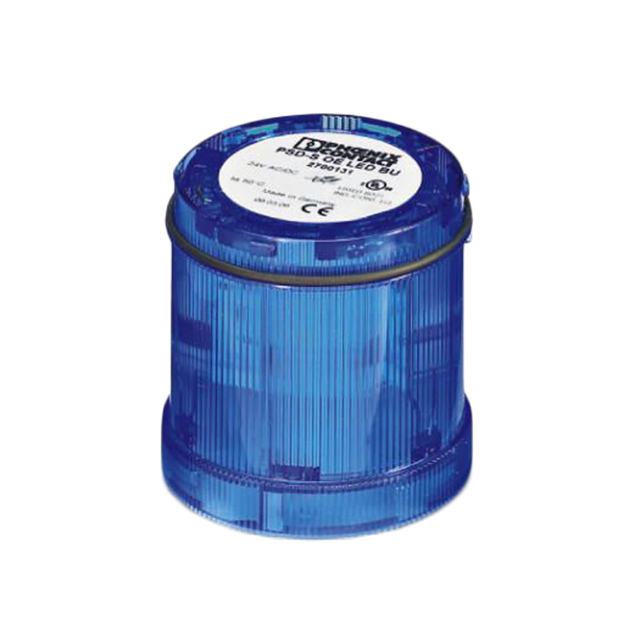

OPTIC ELEMENT BLUE LED STEADY

Search across all available documentation for this part.

Active

Phoenix Contact

OPTIC ELEMENT BLUE LED STEADY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stack Light Optical Element Blue LED

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2700131	27001 Series

Features	-	Adjustable Volume, Magnetic Base, Automatic Volume Control, Integrated Tube
Function - Audible	-	Voice Output, Alternating, Continuous, Pulse, Multiple
Function - Lighting	Steady	Double Flashing, Flashing, Steady, Rotating
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant, IP40
Lamp Type	-	Incandescent, Xenon, Not Included
Light Color	-	Yellow, Clear, Red, Green
Number of Stacks	1	1
Operating Temperature [Max]	50 °C	50 - 60 °C
Operating Temperature [Min]	-20 C	-30 - -20 C
Type	Optical Element	Optical Element, Tube, Replacement End Cover, Mounting Base, Mounting Bracket, Acoustic Element, Outlet Box, Bulb, Mounting Adapter
Voltage - Supply	24 VAC	24 VDC
Voltage - Supply	-	240 VAC
Voltage - Supply	-	12 VAC
Weight	0.128 lb	0.003 - 0.725 lb
Weight	58.06 g	1.36 - 328.85 g

OPTICAL ELEMENT YLW DBL FLASH

Part	Weight	Weight	Function - Lighting	Type	Number of Stacks	Light Color	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply	Ingress Protection
Phoenix Contact 2700124	72.12 g	0.159 lb	Double Flashing	Optical Element	1	Yellow	50 °C	-20 C	24 VDC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700128	58.97 g	0.13 lbs	Flashing	Optical Element	1	Clear	50 °C	-20 C	24 VAC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700131	58.06 g	0.128 lb	Steady	Optical Element	1		50 °C	-20 C	24 VAC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700157	73.03 g	0.161 lb		Tube			60 °C	-20 C
Phoenix Contact 2700116			Rotating	Optical Element	1	Red	50 °C	-20 C	24 VAC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700148	14.06 g	0.031 lb		Replacement End Cover			50 °C	-20 C
Phoenix Contact 2700134	72.12 g	0.159 lb	Double Flashing	Optical Element	1		50 °C	-20 C	24 VDC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700125			Rotating	Optical Element	1	Yellow	50 °C	-20 C	24 VAC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700114	58.97 g	0.13 lbs	Flashing	Optical Element	1	Red	50 °C	-20 C	24 VAC	IP65 - Dust Tight, Water Resistant
Phoenix Contact 2700164	328.85 g	0.725 lb		Mounting Base
