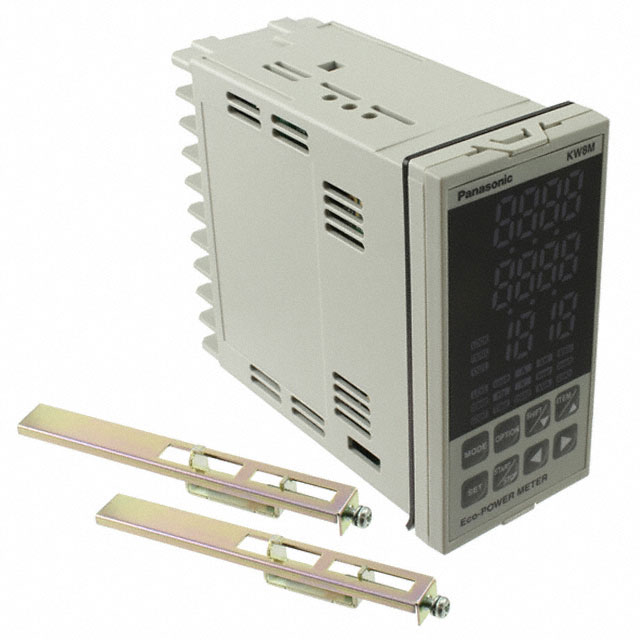

AKW8111
ObsoletePanasonic Industrial Automation Sales
POWER METER LED PANEL MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
AKW8111
ObsoletePanasonic Industrial Automation Sales
POWER METER LED PANEL MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AKW8111 |
|---|---|
| Display Type | LED - Red Characters |
| Features | Electricity Charge |
| Measuring Range [Max] | 63 Hz, 600 A, 400 VAC |
| Measuring Range [Min] | 0 VAC, 0 A, 47.5 Hz |
| Measuring Type | Current (3-Phase), Wattage, Voltage |
| Mounting Type | Panel Mount - Bezel |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Output Type | Solid State |
| Panel Cutout Dimensions [x] | 92 mm |
| Panel Cutout Dimensions [y] | 45 mm |
| Termination Style | Screw Terminal |
| Type | Energy Monitor |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
| Weight | 0.518 lb |
| Weight | 234.96 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AKW811 Series
Energy Monitor LED - Red Characters Display Panel Mount - Bezel
