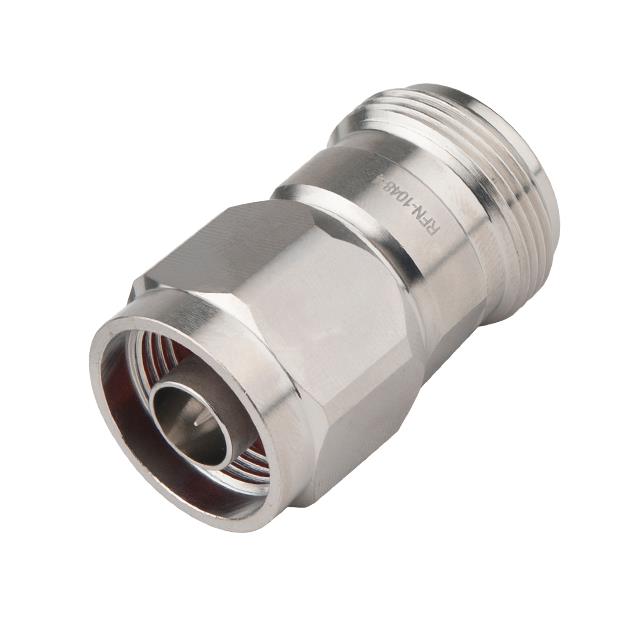

RFN-1048-4

Active

RF Industries

N MALE-4.1/9.5 FEMALE

Search across all available documentation for this part.

Active

RF Industries

N MALE-4.1/9.5 FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFN-1048-4

Adapter Series	4.1/9.5, N
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, 4.1/9.5 Jack
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	7.5 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Adapter Series	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Conversion Type	Center Contact Plating	Style	Convert From (Adapter End)	Impedance	Frequency - Max [Max]	Mating Cycles	Convert To (Adapter End)	Dielectric Material	Mounting Type	Body Finish	Adapter Type	Insertion Loss	Center Contact Material
RF Industries RFN-1048-4	4.1/9.5 N	85 °C	-55 °C	Brass	Between Series	Silver	Straight	4.1/9.5 Jack Female Socket	50 Ohms	7.5 GHz	500	Male Pin N Plug	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	White Bronze	Plug to Jack	0.05 dB	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 4.1/9.5 Jack, Female Socket To N Plug, Male Pin 50 Ohms
