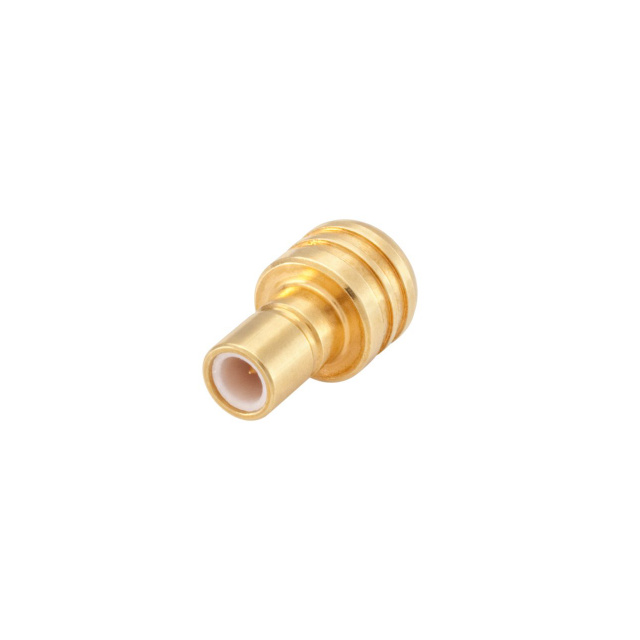

59S15R-001E3

Active

Rosenberger

SMB TERMINATOR

Search across all available documentation for this part.

Active

Rosenberger

SMB TERMINATOR

Technical Specifications

Parameters and characteristics for this part

Specification	59S15R-001E3

Body Finish	Gold
Body Material	Brass
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Finish	Gold
Contact Material	Brass
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Connector Style	Frequency - Max [Max]	Body Finish	Dielectric Material	Connector Type	Body Material	Contact Material	Mounting Type	Contact Finish	Impedance
Rosenberger 59S15R-001E3	SMB	6000 MHz	Gold	Polytetrafluoroethylene (PTFE)	Female Socket Plug	Brass	Brass	Cap Free Hanging	Gold	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20	$ 42.28

General part information

Terminator Coax Connector Plug, Female Socket SMB 50 Ohms

Technical documentation and resources

No documents available
