LTM8027MPY

Active

Analog Devices

60V, 4A DC/DC ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsR598 Reliability Data Datasheet

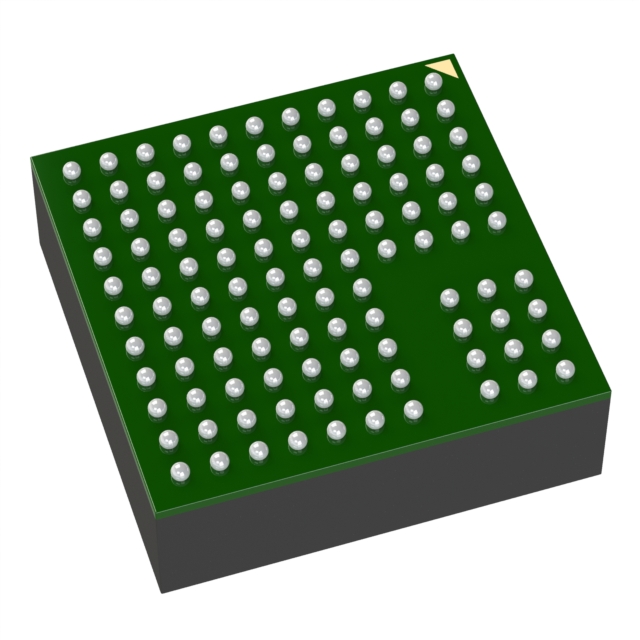

LTM8027MPY

Active

Analog Devices

60V, 4A DC/DC ΜMODULE (POWER MODULE) REGULATOR

Deep-Dive with AI

DocumentsR598 Reliability Data Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM8027MPY

Applications	ITE (Commercial)
Current - Output (Max) [Max]	4 A
Efficiency	95 %
Features	UVLO
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	113-BBGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	15 mm
Size / Dimension [y]	0.59 in
Size / Dimension [z]	4.9 mm
Size / Dimension [z]	0.19 in
Supplier Device Package	113-BGA (15x15)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	60 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	24 V
Voltage - Output 1 [Min]	2.5 V

LTM8027 Series

60V, 4A DC/DC μModule (Power Module) Regulator

Part	Number of Outputs	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Features	Package / Case	Current - Output (Max) [Max]	Mounting Type
Analog Devices LTM8027MPY	1	60 V	113-BGA (15x15)	4.5 V	-55 °C	125 °C	ITE (Commercial)	0.59 in	4.9 mm	15 mm	15 mm	0.59 in	0.19 in	95 %	2.5 V	24 V	Non-Isolated PoL Module	UVLO	113-BBGA Module	4 A	Surface Mount
Analog Devices LTM8027EY#PBF	1	60 V	113-BGA (15x15)	4.5 V	-40 °C	125 °C	ITE (Commercial)	0.59 in	4.3 mm	15 mm	15 mm	0.59 in	0.17 in	95 %	2.5 V	24 V	Non-Isolated PoL Module	SCP UVLO	113-BBGA Module	4 A	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 84.86
		10	$ 67.39

Description

General part information

LTM8027 Series

The LTM8027 is a complete 4A, DC/DC step-down power supply. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 4.5V to 60V (7.5V minimum voltage to start), the LTM8027 supports output voltages up to 24V, and a switching frequency range of 100kHz to 500kHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.The low profile package (4.32mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation. A built-in soft-start timer is adjustable with a small capacitor.The LTM8027 is packaged in a compact (15mm × 15mm × 4.32mm) over-molded land grid array (LGA) and (15mm × 15mm × 4.92mm) BGA package suitable for automated assembly by standard surface mount equipment. The LTM8027 is available with SnPb (BGA) or RoHS compliant terminal finish.Applications12V and 42V Automotive and Heavy Equipment48V Telecom Power SuppliesAvionics and Industrial Control SystemsDistributed Power Converters
