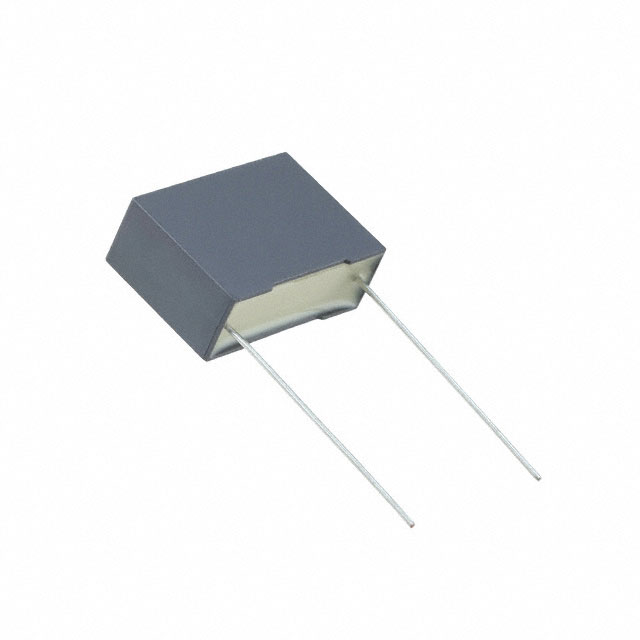

R71VN41004030K

Active

KEMET

CAP, 1ΜF, 520V, 10%, PP, RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP, 1ΜF, 520V, 10%, PP, RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	R71VN41004030K

Applications	High Pulse, DV/DT, Power Factor Correction (PFC), High Frequency, Switching
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	18.6 mm
Height - Seated (Max) [Max] [z]	0.732 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	0.394 in
Size / Dimension [y]	10 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	520 V

Part	Voltage Rating - DC	Tolerance	Termination	Package / Case	Capacitance	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - AC	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Dielectric Material	Mounting Type
KEMET R71VN41004030K	520 V	10 %	PC Pins	Radial	1 µF	High Frequency Switching High Pulse DV/DT Power Factor Correction (PFC)	18.6 mm	0.732 in	250 V	22.5 mm	0.886 in	-40 °C	110 °C	0.394 in	1.043 in	10 mm	26.5 mm	Metallized Polypropylene (PP)	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 250V 520V Polypropylene (PP), Metallized Radial
