M80-4D12005FC

Active

Harwin Inc.

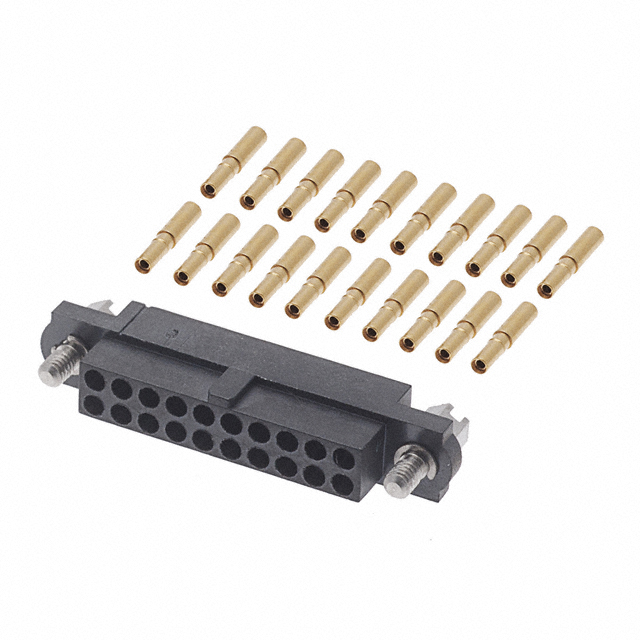

10+10 POS. FEMALE DIL 22AWG CABLE CONN. KIT, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001 Datasheet +2

M80-4D12005FC

Active

Harwin Inc.

10+10 POS. FEMALE DIL 22AWG CABLE CONN. KIT, 101LOK ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-0110001 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4D12005FC

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Features	Polarizing Key, Jackscrews
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Wire Gauge	22 AWG
Wire Type	Discrete

M80-4D1 Series

Part	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Features	Number of Rows	Contact Type	Contact Finish	Connector Type	Mounting Type	Cable Termination	Wire Gauge	Color	Pitch [x]	Pitch [x]	Number of Positions	Row Spacing	Row Spacing
Harwin Inc. M80-4D11005FN-02-325-04-325	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black
Harwin Inc. M80-4D10642FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	6	2 mm	0.079 in
Harwin Inc. M80-4D12605FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	26	2 mm	0.079 in
Harwin Inc. M80-4D11205FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	12	2 mm	0.079 in
Harwin Inc. M80-4D15005FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	50	2 mm	0.079 in
Harwin Inc. M80-4D14205FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	42	2 mm	0.079 in
Harwin Inc. M80-4D11205F2-02-327-00-000	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black			14
Harwin Inc. M80-4D14242FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	42	2 mm	0.079 in
Harwin Inc. M80-4D12005FC	Discrete	0.3 Ám	11.8 Áin	Jackscrews Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	20
Harwin Inc. M80-4D10805FC	Discrete	0.3 Ám	11.8 Áin	Mating Flange Polarizing Key	2	Female Socket	Gold	Receptacle	Free Hanging (In-Line)	Crimp	22 AWG	Black	0.079 in	2 mm	8	2 mm	0.079 in
