786556-5

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50P VERT PRESS

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 50P VERT PRESS

Technical Specifications

Parameters and characteristics for this part

Specification	786556-5

Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polyphthalamide (PPA)
Features	Shielded
Flange Feature	Latchblocks, Housing/Shell (2-56), Rails
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Press-Fit
Voltage Rating	30 VDC

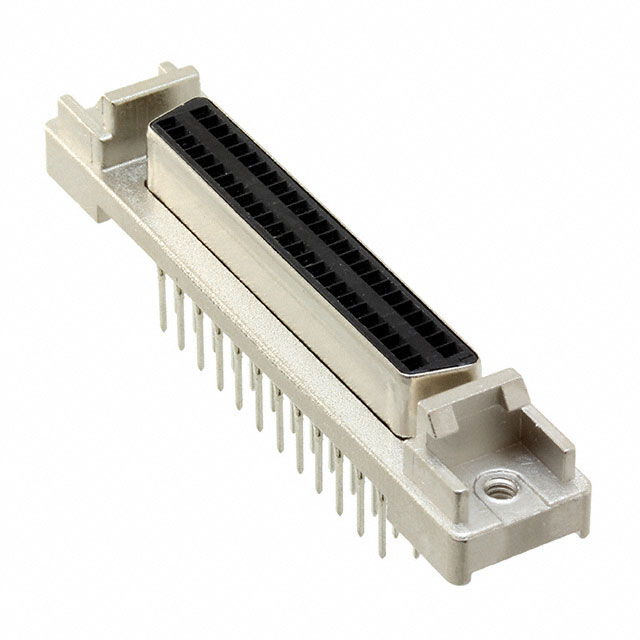

CONN D-TYPE RCPT 50P VERT PRESS

Part	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Material Flammability Rating	Number of Rows	Contact Type	Shell Material, Finish	Voltage Rating	Connector Style	Dielectric Material	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Termination	Flange Feature	Connector Type	Color	Mounting Type	Contact Material
TE Connectivity AMP Connectors 786556-5	Shielded	50	105 ░C	-55 °C	Gold	UL94 V-0	2	Signal	Nickel Plated, Steel	30 VDC	D-Type	Polyphthalamide (PPA)	0.05	0.1	Press-Fit	Housing/Shell (2-56), Latchblocks, Rails	Receptacle, Female Sockets	Black	Through Hole	Phosphor Bronze
