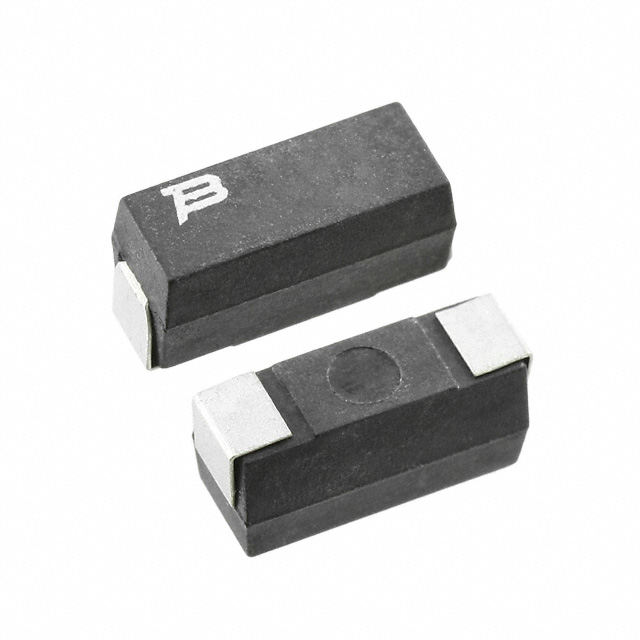

PWR4318W1R10F

Active

Bourns Inc.

RESISTOR, FIXED, POWER /BULK, BAG PACKAGING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PWR4318W1R10F

Active

Bourns Inc.

RESISTOR, FIXED, POWER /BULK, BAG PACKAGING

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PWR4318W1R10F

Composition	Wirewound
Features	Current Sense, Pulse Withstanding
Height - Seated (Max) [Max]	5.16 mm
Height - Seated (Max) [Max] [z]	0.203 "
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	4318 J-Lead
Power (Watts)	2 W
Resistance	1.1 Ohms
Size / Dimension [x]	0.433 in
Size / Dimension [x]	11 mm
Size / Dimension [y]	0.177 "
Size / Dimension [y]	4.5 mm
Supplier Device Package	4318
Temperature Coefficient	50 ppm/°C
Tolerance	1 %

PWR4318 Series

Part	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance	Features	Package / Case	Number of Terminations	Power (Watts)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Temperature Coefficient	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Bourns Inc. PWR4318W1R00JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	1 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	50 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W20R0JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	20 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	20 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W4R70JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	4.7 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	50 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W33R0J	4318	0.433 in	0.177 "	4.5 mm	11 mm	33 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	20 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W82R0JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	82 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	20 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318WR500JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	500 mOhms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	90 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W2R20JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	2.2 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	50 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W7R50JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	7.5 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	50 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318W1R10F	4318	0.433 in	0.177 "	4.5 mm	11 mm	1.1 Ohms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	1 %	155 °C	-55 °C	50 ppm/°C	Wirewound	5.16 mm	0.203 "
Bourns Inc. PWR4318WR200JE	4318	0.433 in	0.177 "	4.5 mm	11 mm	200 mOhms	Current Sense Pulse Withstanding	4318 J-Lead	2	2 W	5 %	155 °C	-55 °C	90 ppm/°C	Wirewound	5.16 mm	0.203 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 0.81
Newark	Each	100	$ 0.85
		500	$ 0.75
		1000	$ 0.64
		2500	$ 0.59

Description

General part information

PWR4318 Series

1.1 Ohms ±1% 2W Chip Resistor 4318 J-Lead Current Sense, Pulse Withstanding Wirewound
