C2422A.38.10

Active

Prysmian Group

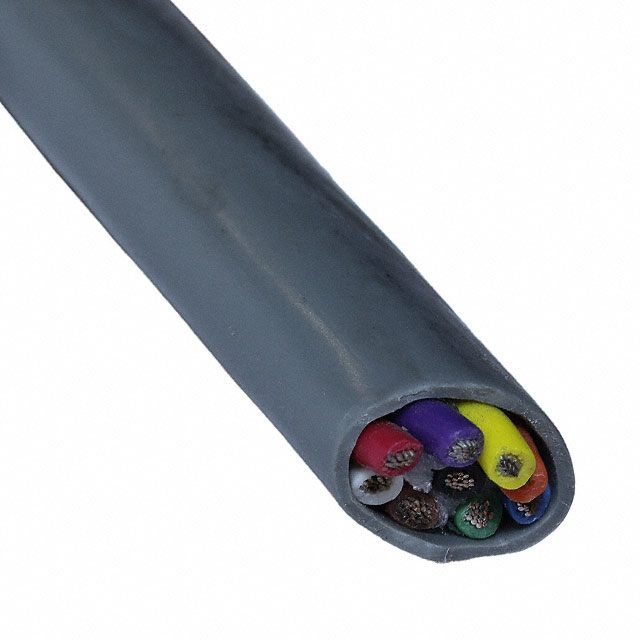

CABLE 9COND 18AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 9COND 18AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C2422A.38.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.358 in
Jacket (Insulation) Diameter [diameter]	9.09 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Material	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Number of Conductors	Length	Length
Prysmian Group C2422A.38.10	-20 C	80 C	Copper Tinned	Gray	18 AWG	500 '	152.4 m	Poly-Vinyl Chloride (PVC)	Communication Control	0.358 in	9.09 mm	Poly-Vinyl Chloride (PVC)	300 V	16	30 AWG	Multi-Conductor	9
Prysmian Group C2422A.41.10	-20 C	80 C	Copper Tinned	Gray	18 AWG	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)	Communication Control	0.358 in	9.09 mm	Poly-Vinyl Chloride (PVC)	300 V	16	30 AWG	Multi-Conductor	9	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25000	$ 1.82

General part information

9 Conductor Multi-Conductor Cable Gray 18 AWG 500.0' (152.4m)
