MCC162-14IO1

Active

IXYS

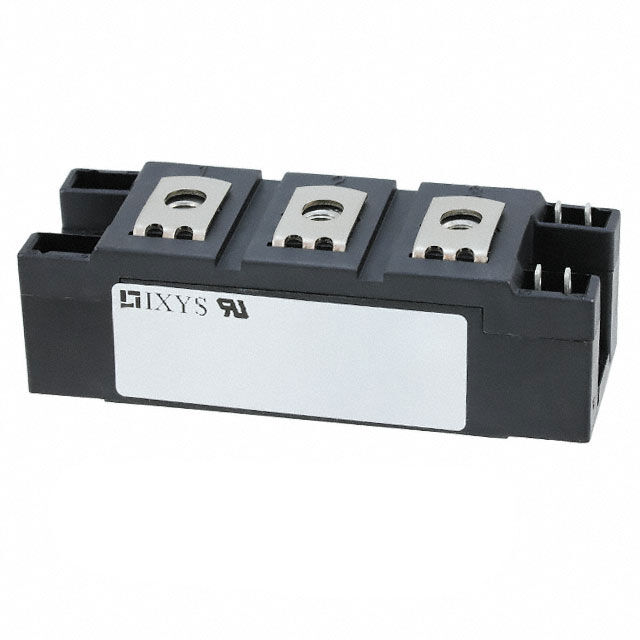

SCR MODULE 1.4KV 300A Y4-M6

Search across all available documentation for this part.

Active

IXYS

SCR MODULE 1.4KV 300A Y4-M6

Technical Specifications

Parameters and characteristics for this part

Specification	MCC162-14IO1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	6400 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	6000 A
Current - On State (It (RMS)) (Max) [Max]	300 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Y4-M6
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.4 kV

Part	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max)	Number of SCRs, Diodes	Package / Case	Voltage - Off State	Mounting Type	Structure	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]
IXYS MCC162-18IO1	6000 A	6400 A	-40 °C	125 ¯C	300 A	2.5 V	2 SCRs	Y4-M6	1.8 kV	Chassis Mount	Series Connection - All SCRs	200 mA	150 mA
IXYS MCC162-12IO1	6000 A	6400 A	-40 °C	125 ¯C	300 A	2.5 V	2 SCRs	Y4-M6	1.2 kV	Chassis Mount	Series Connection - All SCRs	200 mA	150 mA
IXYS MCC162-14IO1	6000 A	6400 A	-40 °C	125 ¯C	300 A	2.5 V	2 SCRs	Y4-M6	1.4 kV	Chassis Mount	Series Connection - All SCRs	200 mA	150 mA
