TL3330AF130QG
ActiveE-Switch

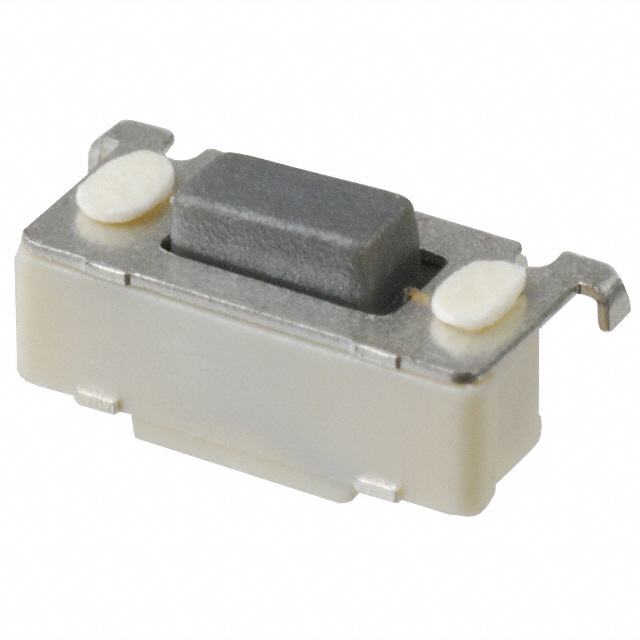

TACTILE SWITCH, TL3330 SERIES, SIDE ACTUATED, SURFACE MOUNT, RECTANGULAR BUTTON, 130 GF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
TL3330AF130QG
ActiveE-Switch
TACTILE SWITCH, TL3330 SERIES, SIDE ACTUATED, SURFACE MOUNT, RECTANGULAR BUTTON, 130 GF
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3330AF130QG |
|---|---|
| Actuator Length, Right Angle | 3.5 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount, Right Angle |
| Operating Force | 130 gf |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Outline [x] | 7.8 mm |
| Outline [y] | 2.5 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | Gull Wing |
