151216-2320-RB

Active

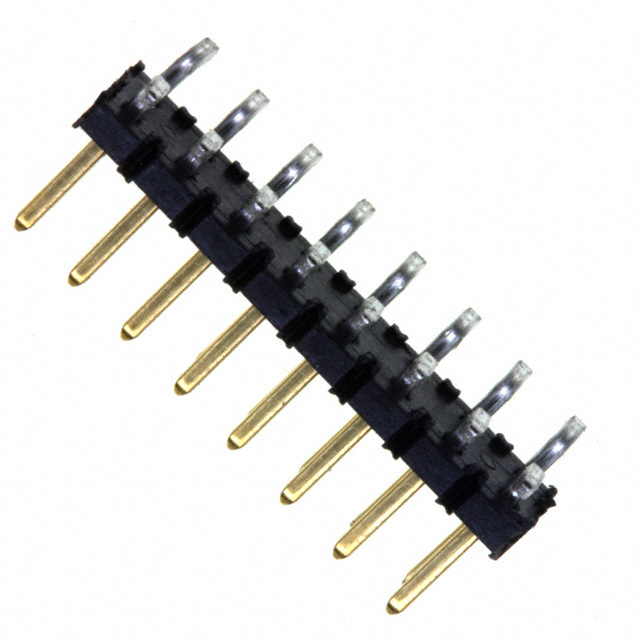

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

151216-2320-RB

Active

CONN HEADER SMD 16POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

151216 Series

Connector Header Surface Mount 16 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	151216-2320-RB	151216 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.13 in	0.13 - 0.152 in
Contact Length - Mating	3.3 mm	3.3 - 3.86 mm
Contact Length - Post	-	0.118 in
Contact Length - Post	-	3 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height [z]	0.06 in	0.06 - 0.165 in
Insulation Height [z]	1.52 mm	1.52 - 4.2 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	-	8.36 mm
Overall Contact Length	-	0.329 in
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Unshrouded	Unshrouded
Style	-	Board to Board, Cable
Termination	Solder	Solder

151216 Series

CONN HEADER SMD 16POS 2MM

Part	Contact Type	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Connector Type	Contact Finish - Mating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Contact Finish - Post	Mounting Type	Number of Rows	Insulation Color	Termination	Number of Positions Loaded	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Length - Post	Contact Length - Post	Style	Overall Contact Length	Overall Contact Length
3M 151216-2320-RB	Male Pin	0.06 in	1.52 mm	16	30 Áin	0.76 Ám	0.079 in	2 mm	Square	Header	Gold	Push-Pull	105 ░C	-55 °C	200 µin	5.08 µm	Unshrouded	0.079 in	2 mm	UL94 V-0	Tin	Surface Mount	2	Black	Solder	All	Copper Alloy	0.13 in	3.3 mm
3M 151216-2420-TB	Male Pin	0.06 in	1.52 mm	16	30 Áin	0.76 Ám	0.079 in	2 mm	Square	Header	Gold	Push-Pull	105 ░C	-55 °C	200 µin	5.08 µm	Unshrouded	0.079 in	2 mm	UL94 V-0	Tin-Lead	Surface Mount	2	Black	Solder	All	Copper Alloy	0.152 in	3.86 mm
3M 151216-7422-RB	Male Pin	0.165 in	4.2 mm	16	30 Áin	0.76 Ám	0.079 in	2 mm	Square	Header	Gold	Push-Pull	105 ░C	-55 °C	200 µin	5.08 µm	Unshrouded	0.079 in	2 mm	UL94 V-0	Tin	Through Hole, Right Angle	2	Black	Solder	All	Copper Alloy	0.152 in	3.86 mm	0.118 in	3 mm	Board to Board, Cable
3M 151216-8422-RB	Male Pin	0.06 in	1.52 mm	16	30 Áin	0.76 Ám	0.079 in	2 mm	Square	Header	Gold	Push-Pull	105 ░C	-55 °C	200 µin	5.08 µm	Unshrouded	0.079 in	2 mm	UL94 V-0	Tin	Through Hole	2	Black	Solder	All	Copper Alloy	0.152 in	3.86 mm	0.118 in	3 mm	Board to Board, Cable	8.36 mm	0.329 in
