LDM-12457NI

Active

Lumex Opto/Components Inc.

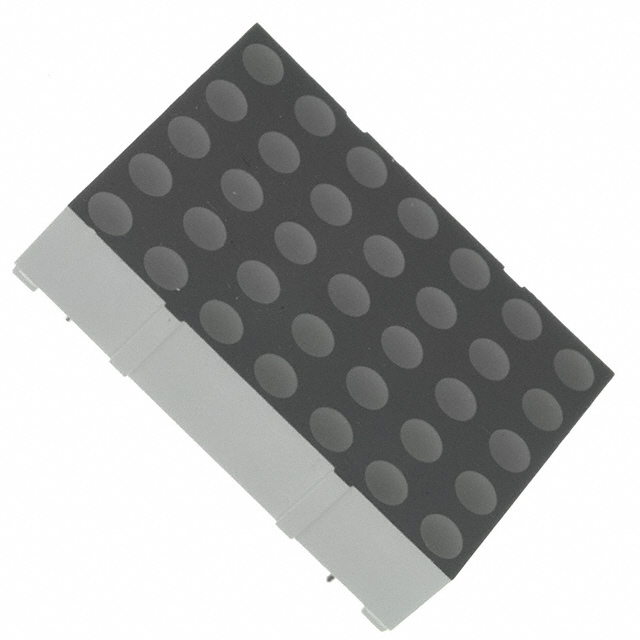

LED MATRIX 5X7 1.2" 630NM RED CA

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED MATRIX 5X7 1.2" 630NM RED CA

Technical Specifications

Parameters and characteristics for this part

Specification	LDM-12457NI

Color	Red
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Cathode Column, Common Anode Row
Millicandela Rating	3.9 mcd
Size / Dimension [x]	0.9 "
Size / Dimension [x]	22.9 mm
Size / Dimension [y]	1.26 in
Size / Dimension [y]	32 mm
Size / Dimension [z]	0.32 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2 V

LED MATRIX 5X7 1.2" 630NM RED CA

Part	Internal Connection	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Color	Millicandela Rating	Configuration [y]	Configuration [x]
Lumex Opto/Components Inc. LDM-12457NI	Common Anode Row, Common Cathode Column	2 V	1.26 in	32 mm	0.9 "	22.9 mm	0.32 "	8 mm	Red	3.9 mcd	7	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dot Matrix Display Module 5 x 7 Common Anode Row, Common Cathode Column Red 2V 0.90" L x 1.26" W x 0.32" H (22.90mm x 32.00mm x 8.00mm)

Technical documentation and resources

No documents available
