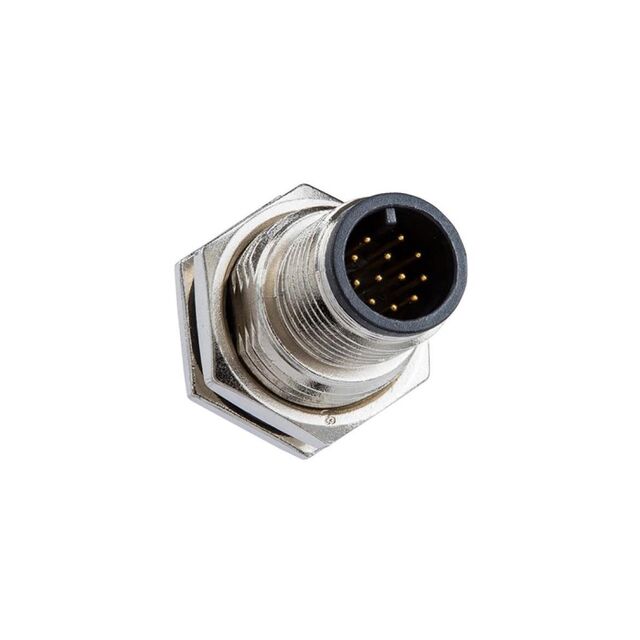

MSAS-12PMMS-SF8001

Active

Amphenol LTW

M SERIES, M12, 1.5A, 12 PINS, RE

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 1.5A, 12 PINS, RE

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-12PMMS-SF8001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	M12-12
Shielding	Shielded
Voltage Rating	30 VAC

Part	Shielding	Insert Material	Shell Size - Insert	Current Rating (Amps)	Ingress Protection	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Finish - Mating	Color	Primary Material	Contact Material	Connector Type	Voltage Rating	Mounting Feature	Shell Material
Amphenol LTW MSAS-12PMMS-SF8001	Shielded	Polyamide (PA) Nylon Glass Filled	M12-12	1.5 A	IP68 IP69K	A	-40 °C	105 ░C	12	Gold	Black	Plastic	Copper Alloy	Male Pins Receptacle	30 VAC	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)
Amphenol LTW MSAS-12PMMS-SF8002	Shielded	Polyamide (PA) Nylon Glass Filled	M12-12	1.5 A	IP68 IP69K	A	-40 °C	105 ░C	12	Gold	Black	Plastic	Copper Alloy	Male Pins Receptacle	30 VAC	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Male Pins Solder Cup
