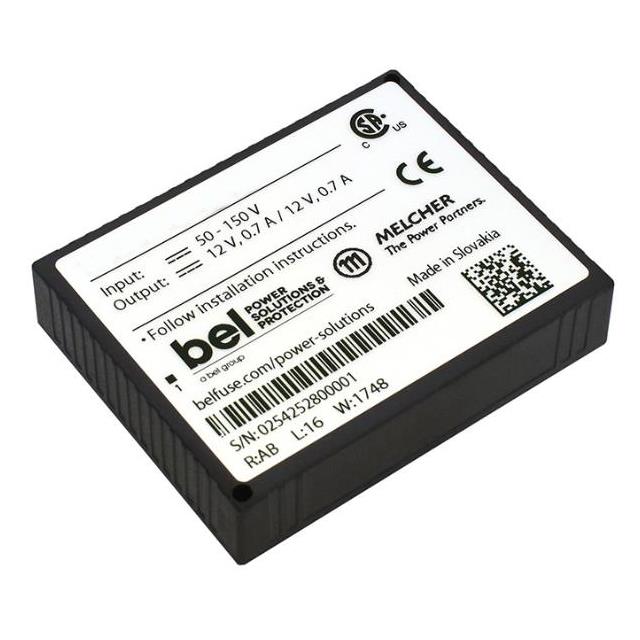

20IMX15-05-8RG-G

Active

Bel Power Solutions

DC DC CONVERTER 5.1V 18W

Deep-Dive with AI

Search across all available documentation for this part.

20IMX15-05-8RG-G

Active

Bel Power Solutions

DC DC CONVERTER 5.1V 18W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20IMX15-05-8RG-G	20IMX15 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max)	-	1.35 A
Current - Output (Max)	-	1.35 - 650 A
Current - Output (Max)	-	500 - 650 mA
Current - Output (Max) [Max]	3.5 A	1.3 - 4.5 A
Efficiency	86 %	84 - 88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	UVLO, OTP, OVP, SCP, OCP, Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17-DIP Module, 9 Leads	17-DIP Module, 9 Leads
Power (Watts)	18 W	15 - 18 W
Size / Dimension	-	1.6 "
Size / Dimension	-	2 in
Size / Dimension	-	0.41 "
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	40.9 mm	40.9 mm
Size / Dimension [y]	1.61 in	1.61 - 40.6 mm
Size / Dimension [z]	10.4 mm	10.4 mm
Size / Dimension [z]	0.41 "	0.41 - 10.5 mm
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	8.4 V	8.4 V
Voltage - Isolation	2.1 kV	2.1 kV
Voltage - Output 1	5.1 V	3.3 - 15 V
Voltage - Output 2	-	3.3 - 15 V

20IMX15 Series

DC DC CONVERTER 5.1V 15W

Part	Efficiency	Voltage - Isolation	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1	Power (Watts)	Mounting Type	Applications	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Bel Power Solutions 20IMX15-05-8RG	86 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO	3.5 A	1	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	5.1 V	15 W	Through Hole	ITE (Commercial), Railway	36 V
Bel Power Solutions 20IMX15-05-8RG-G	86 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	3.5 A	1	0.41 "	1.61 in		50.8 mm			5.1 V	18 W	Through Hole	ITE (Commercial), Railway	36 V	40.9 mm	50.8 mm	10.4 mm	17-DIP Module, 9 Leads
Bel Power Solutions 20IMX15-05-8R-G	86 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO	3.5 A	1	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	5.1 V	15 W	Through Hole	ITE (Commercial), Railway	36 V
Bel Power Solutions 20IMX15-0503-8RG	84 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OCP, OTP, OVP, SCP, UVLO		2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	5.1 V	15 W	Through Hole	ITE (Commercial), Railway	36 V					1.35 A	1.35 A	3.3 V
Bel Power Solutions 20IMX15-05-05-8G	86 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO	1.3 A	2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	5 V	15 W	Through Hole	ITE (Commercial), Railway	36 V							5 V
Bel Power Solutions 20IMX15-15-15-8G	88 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OCP, OTP, OVP, SCP, UVLO		2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 V	15 W	Through Hole	ITE (Commercial), Railway	36 V						500 mA	15 V	500 mA
Bel Power Solutions 20IMX15-03-8RG	84 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO	4.5 A	1	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	3.3 V	15 W	Through Hole	ITE (Commercial), Railway	36 V
Bel Power Solutions 20IMX15-12-12-8G	88 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO		2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	12 V	15 W	Through Hole	ITE (Commercial), Railway	36 V						650 mA	12 V	650 mA
Bel Power Solutions 20IMX15-05-05-8	86 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO	1.3 A	2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	5 V	15 W	Through Hole	ITE (Commercial), Railway	36 V							5 V
Bel Power Solutions 20IMX15-15-15-8	88 %	2.1 kV	Conformal Coated, Isolated Module	85 °C	-40 °C	8.4 V	OTP, OVP, SCP, UVLO		2	10.5 mm	40.6 mm	1.6 "	50.8 mm	2 in	0.41 "	15 V	15 W	Through Hole	ITE (Commercial), Railway	36 V						500 mA	15 V	500 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 172.20
		5	$ 169.43
		12	$ 166.65
		36	$ 155.54
		60	$ 149.99

Description

General part information

20IMX15 Series

Isolated Module, Conformal Coated DC DC Converter 1 Output 5.1V 3.5A 8.4V - 36V Input
