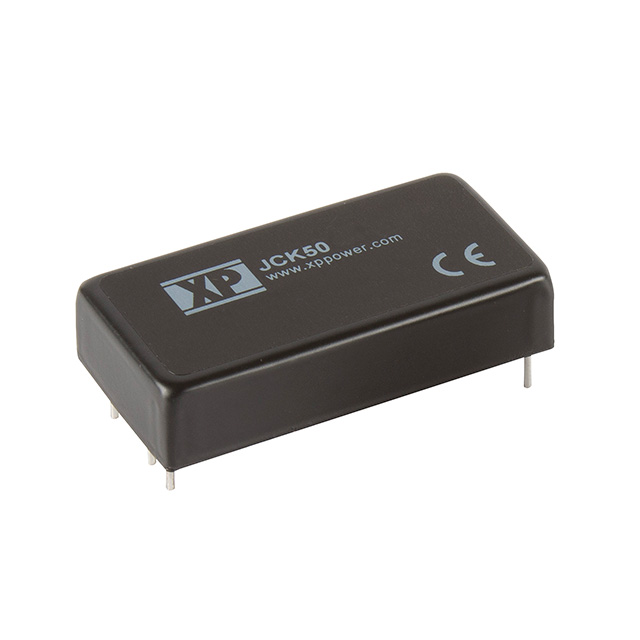

JCK5012S15
ActiveXP POWER
DC DC CONVERTER 15V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JCK5012S15
ActiveXP POWER
DC DC CONVERTER 15V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JCK5012S15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3.33 A |
| Efficiency | 89 % |
| Features | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 50 W |
| Standard Number | 62368-1 |
| Supplier Device Package | 6-DIP |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 10 | $ 82.72 | |
Description
General part information
JCK5012 Series
Isolated Module DC DC Converter 1 Output 15V 3.33A 9V - 18V Input
