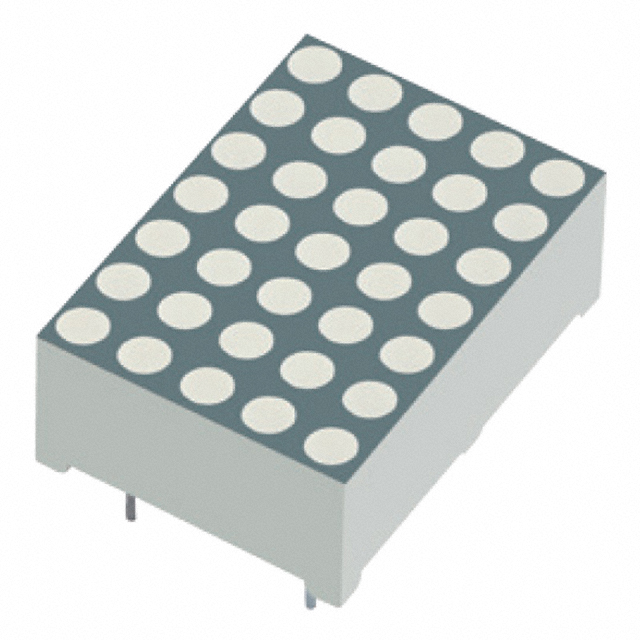

XMUR18C

Active

SunLED

LED DOT MATRIX 5X7 0.7" RED CC

Search across all available documentation for this part.

Active

SunLED

LED DOT MATRIX 5X7 0.7" RED CC

Technical Specifications

Parameters and characteristics for this part

Specification	XMUR18C

Color	Red
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Cathode Column, Common Anode Row
Millicandela Rating	2 mcd
Size / Dimension [x]	0.7 in
Size / Dimension [x]	17.78 mm
Size / Dimension [y]	0.5 in
Size / Dimension [y]	12.7 mm
Size / Dimension [z]	0.25 "
Size / Dimension [z]	6.4 mm
Voltage - Forward (Vf) (Typ)	1.9 V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Forward (Vf) (Typ)	Color	Configuration [y]	Configuration [x]	Millicandela Rating	Internal Connection
SunLED XMUR18C	0.5 in	0.7 in	0.25 "	12.7 mm	17.78 mm	6.4 mm	1.9 V	Red	7	5	2 mcd	Common Anode Row Common Cathode Column

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	140	$ 3.31

General part information

Dot Matrix Display Module 5 x 7 Common Anode Row, Common Cathode Column Red 1.9V 0.70" L x 0.50" W x 0.25" H (17.78mm x 12.70mm x 6.40mm)
