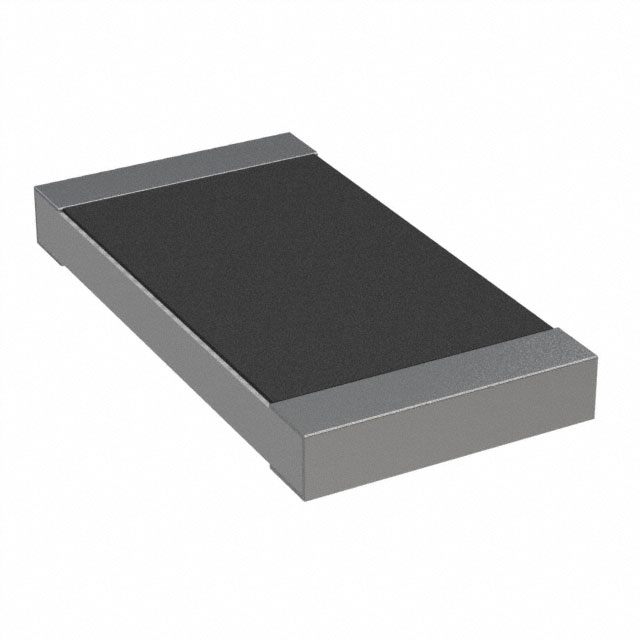

VSRP2512S1-R015F

Active

Delta Electronics/Cyntec

RES 0.015 OHM 1% 1W 2512

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VSRP2512S1-R015F

Active

Delta Electronics/Cyntec

RES 0.015 OHM 1% 1W 2512

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.76
		10	$ 0.60
		25	$ 0.55
		50	$ 0.49
		100	$ 0.41
		250	$ 0.38
		500	$ 0.31
		1000	$ 0.25
	Digi-Reel®	1	$ 0.76
		10	$ 0.60
		25	$ 0.55
		50	$ 0.49
		100	$ 0.41
		250	$ 0.38
		500	$ 0.31
		1000	$ 0.25
	Tape & Reel (TR)	2000	$ 0.23

Description

General part information

VSRP2512S1 Series

15 mOhms ±1% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense Thick Film

Documents

Technical documentation and resources

Specification	VSRP2512S1-R015F	VSRP2512S1 Series

Composition	Thick Film	Thick Film
Features	Automotive AEC-Q200, Current Sense	Automotive AEC-Q200, Current Sense
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	6432 Metric	6432 Metric
Package / Case	2512	2512
Power (Watts)	1 W	1 W
Ratings	AEC-Q200	AEC-Q200
Resistance	15 mOhms	0.02 - 600 Ohms
Supplier Device Package	2512	2512
Temperature Coefficient	400 ppm/°C	100 - 400 ppm/°C
Tolerance	1 %	1 - 5 %

Part	Features	Ratings	Number of Terminations	Resistance	Composition	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Temperature Coefficient
Delta Electronics/Cyntec VSRP2512S1-R030F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	0.03 Ohms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	200 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R050F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	0.05 Ohms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	100 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R100F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	0.1 Ohms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	100 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R010F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	10 mOhms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	400 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R030J	Automotive AEC-Q200, Current Sense	AEC-Q200	2	0.03 Ohms	Thick Film	5 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	200 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R015F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	15 mOhms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	400 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R100J	Automotive AEC-Q200, Current Sense	AEC-Q200	2	0.1 Ohms	Thick Film	5 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	100 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R200F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	200 mOhms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	100 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R170F	Automotive AEC-Q200, Current Sense	AEC-Q200	2	170 mOhms	Thick Film	1 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	100 ppm/°C
Delta Electronics/Cyntec VSRP2512S1-R025J	Automotive AEC-Q200, Current Sense	AEC-Q200	2	25 mOhms	Thick Film	5 %	0.8 mm	0.031 "	2512	1 W	155 °C	-55 °C	6432 Metric	2512	250 ppm/°C
