WB242D1121

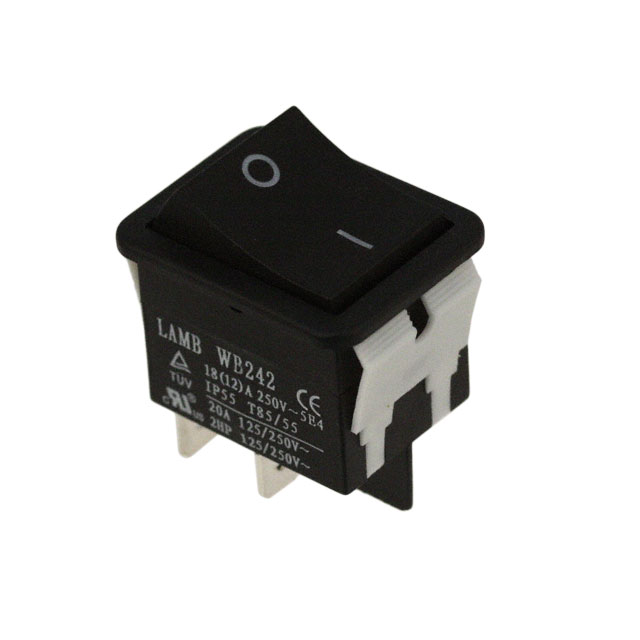

ActiveROCKER SWITCH, NON ILLUMINATED, DPST, OFF-ON, BLACK, PANEL MOUNT, 20 A
Deep-Dive with AI
Search across all available documentation for this part.
WB242D1121
ActiveROCKER SWITCH, NON ILLUMINATED, DPST, OFF-ON, BLACK, PANEL MOUNT, 20 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WB242D1121 |
|---|---|
| Actuator Marking | O - |
| Actuator Type | Concave (Curved) |
| Approval Agency | CE, TUV, cULus |
| Circuit | DPST |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Ingress Protection | IP55 - Dust Protected, Water Resistant |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30 mm |
| Panel Cutout Dimensions [y] | 22 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
WB242D1 Series
The WB242D1121 is a double-pole single-throw (DPST) Power Rocker Switch with OFF-ON function, an internal dust and water protection seal. The WB2 series switch has 6.3mm tabs termination and white I/O vertical marking. It is made up of polyamide 6/6 body, actuator and mounting ears, ethylene propylene rubber seal, silver alloy contacts and silver-plated brass terminal.
