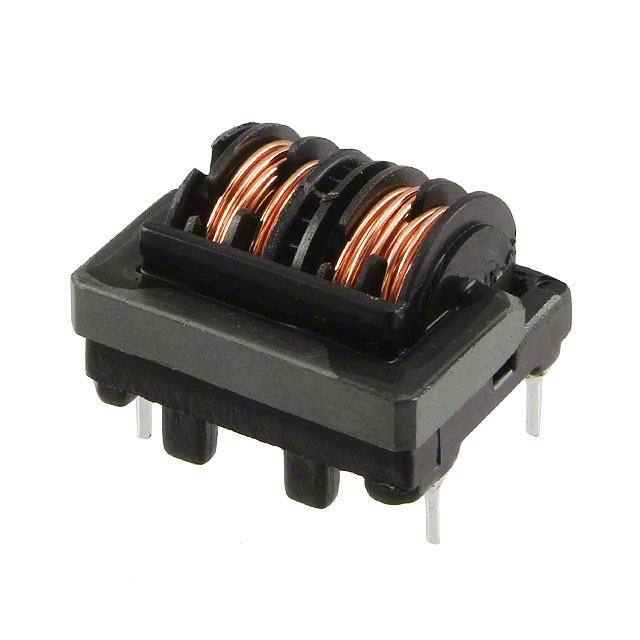

SS17HB-R13020
ActiveKEMET
COMMON MODE CHOKES DUAL 2000UH 1KHZ 1.3A 0.18OHM DCR THRU-HOLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS17HB-R13020
ActiveKEMET
COMMON MODE CHOKES DUAL 2000UH 1KHZ 1.3A 0.18OHM DCR THRU-HOLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS17HB-R13020 |
|---|---|
| Current Rating (Max) [Max] | 1.3 A |
| DC Resistance (DCR) (Max) [Max] | 180 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 13.8 mm |
| Height (Max) [Max] | 0.543 in |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 20 mm |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [y] | 17.85 mm |
| Size / Dimension [y] | 0.703 in |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SS17HB Series
2 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 180mOhm
